RC150-EOL
150 Km/h
500/625 kW
Built for Heavy-Duty Performance
Testing at the limit and beyond... That’s what we had in mind when developing our top of the line chassis dynamometer for agricultural and industrial wheel loaders.
The RC150-EOL allows you to do heavy duty testing for a whole range of vehicles. From the smallest wheel loader to the heavy duty class (up to 20ton) and all in between.
Customizable R&D & End-of-Line Vehicle Testing

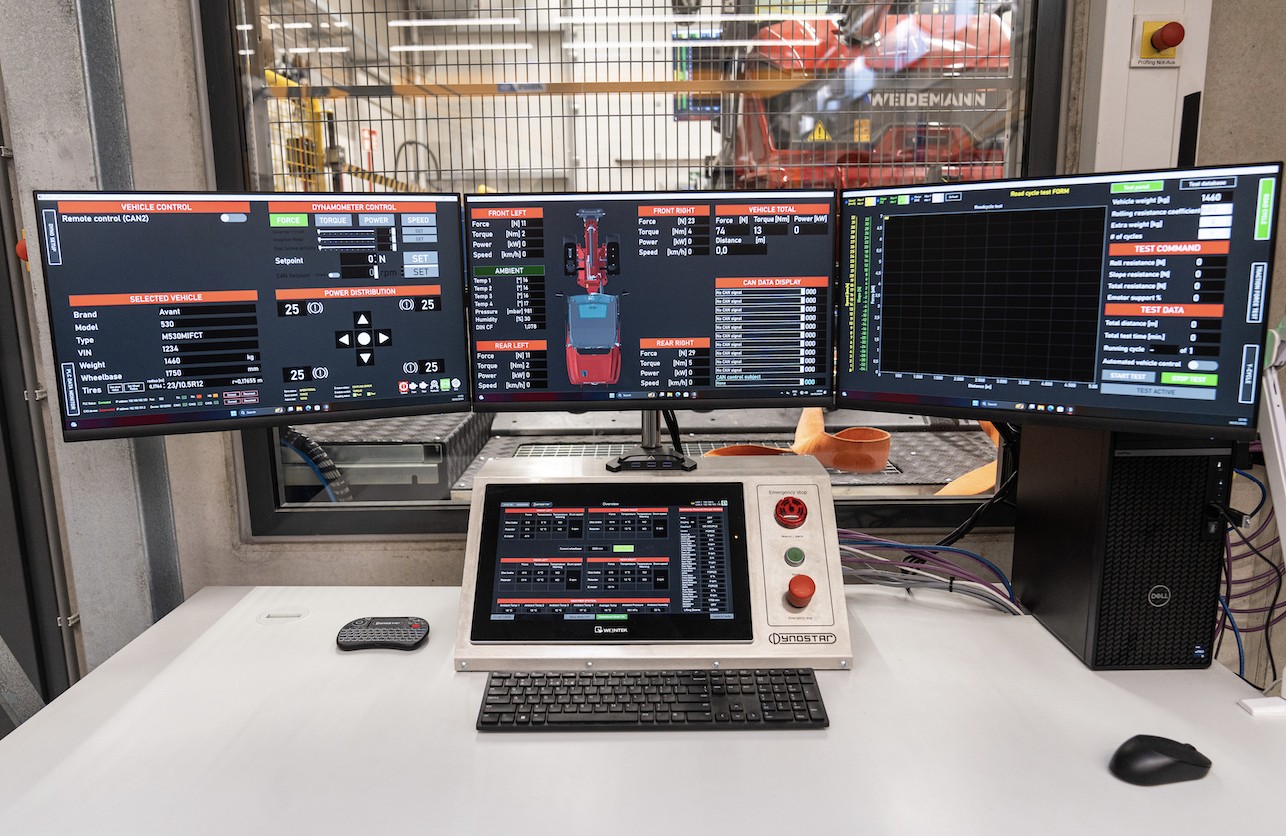

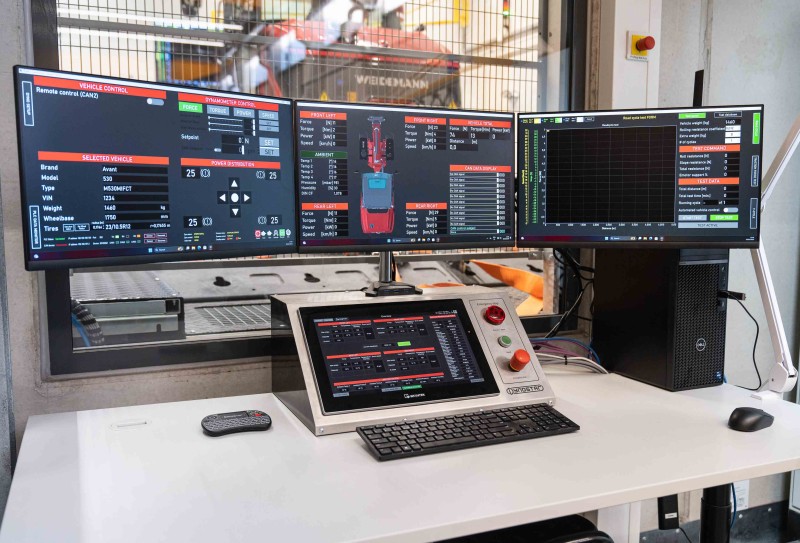

Zero speed max traction force test, drive cycles, automated testing based on GPS data or full manual control. With the in house developed software and controls, we can easily customize the software to your requirements and needs. The RC150-EOL is suitable for R&D and EOL testing.
| Weight: | 14000 kg |
| Dimensions (lxwxh): | 8.15 x 4.60 x 1 m |
| Power requirements: | 3x400VAC+N+PE, 315A, 50-60Hz |
| Max. speed: | 150 kph |
| Max. speed e-drive: | 50 kph |
| Drum width: | 1350 mm |
| Drum width: | 1350 mm |
| Drum diameter: | 400 mm |
| Min. wheelbase roller top: | 850 mm |
| Air requirements: | Min. 6 bar |
| Operating temperature: | -10°C to + 50°C |
| Humidity: | Max. 95% |
| Weight: | 14000 kg |
| Dimensions (lxwxh): | 8.15 x 4.60 x 1 m |
| Power requirements: | 3x400+N+PE 315 A |
| Air requirements: | Min. 6 bar |
| Operating temperature: | -10°C to + 50°C |
| Humidity: | Max. 95% |
Technical specifications
This product was used in
Read more Dynostar x Weidemann

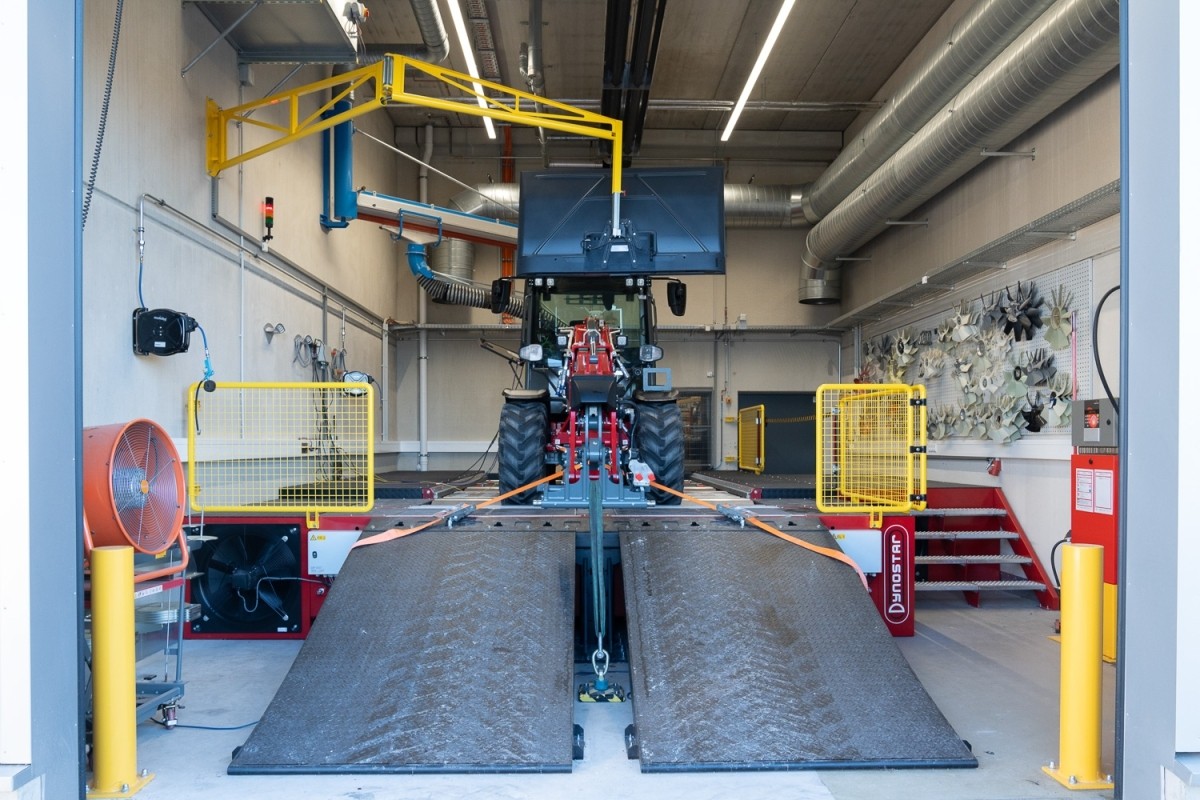

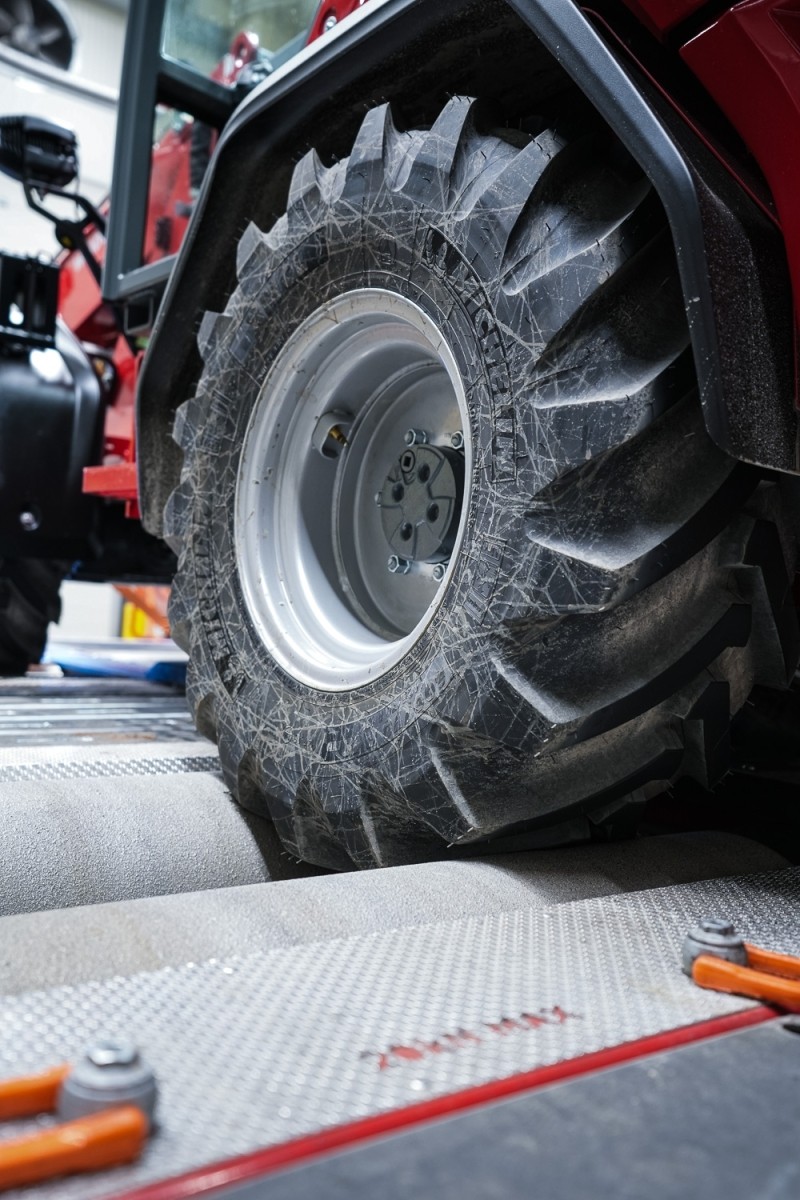

Weidemann, a manufacturer of wheelloaders, faced a limitation in their testing capabilities. Without access to a properly functioning dynamometer, vehicles had to be tested outdoors along the industrial estate.
