ETB76
1250 [kW]

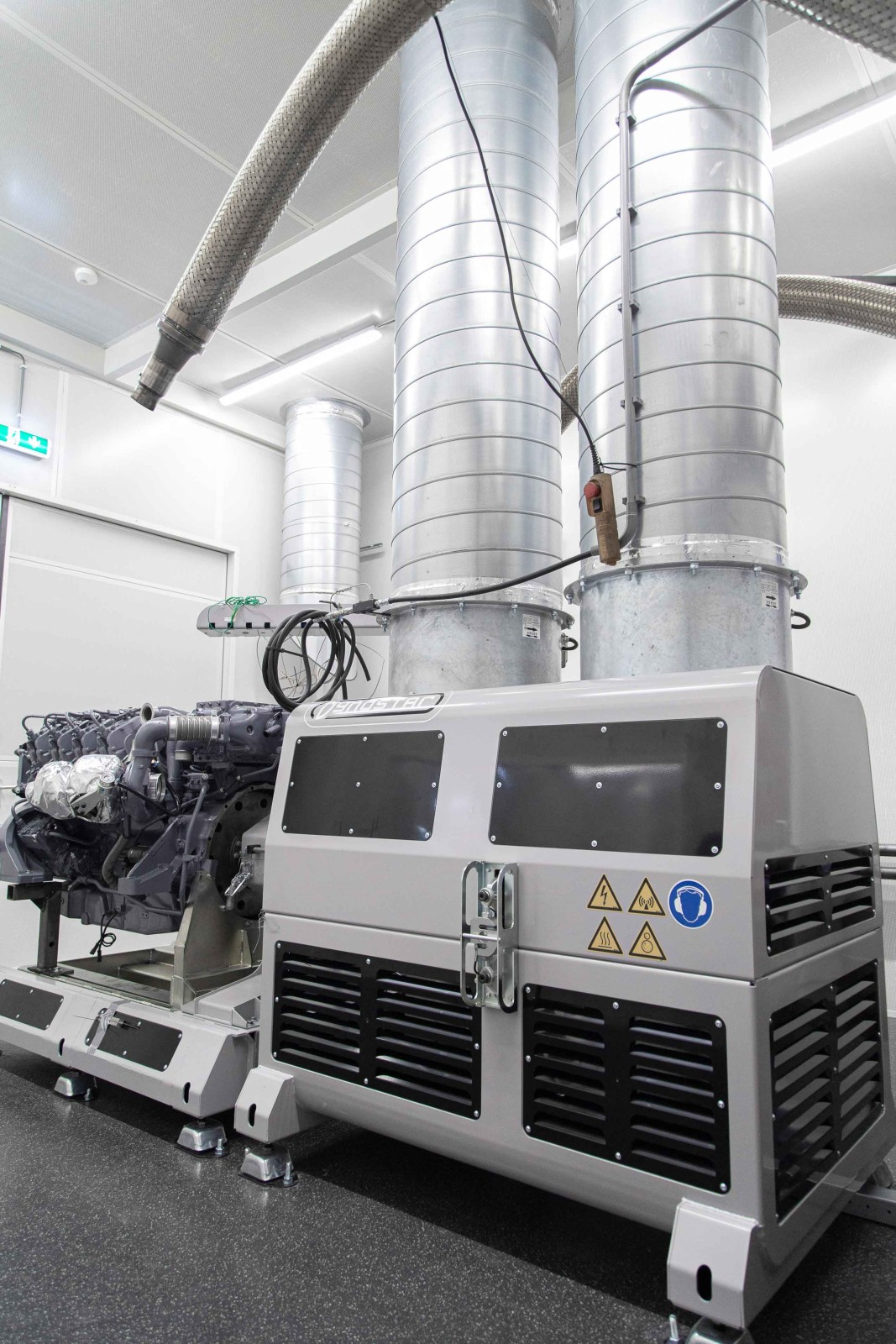

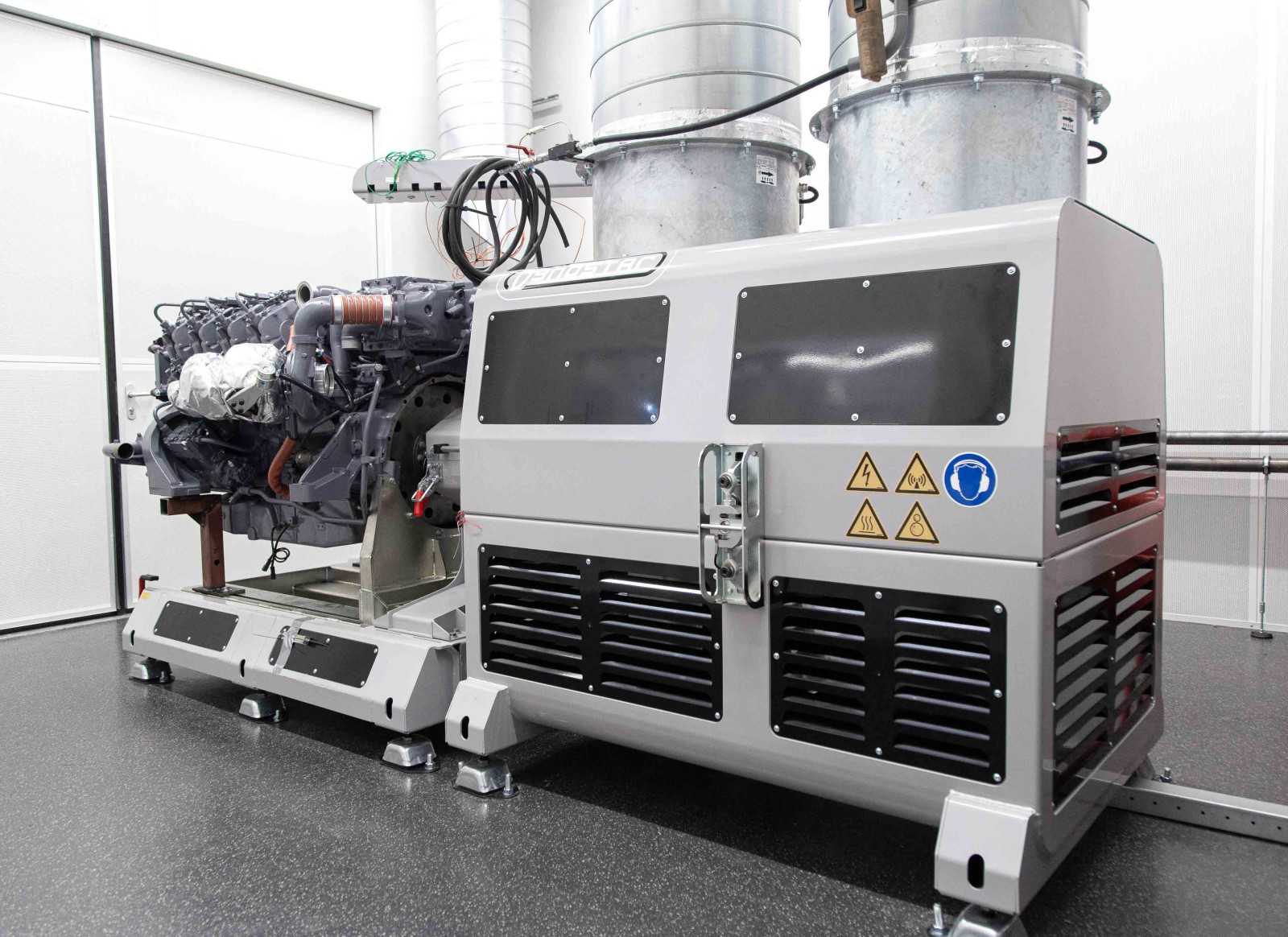

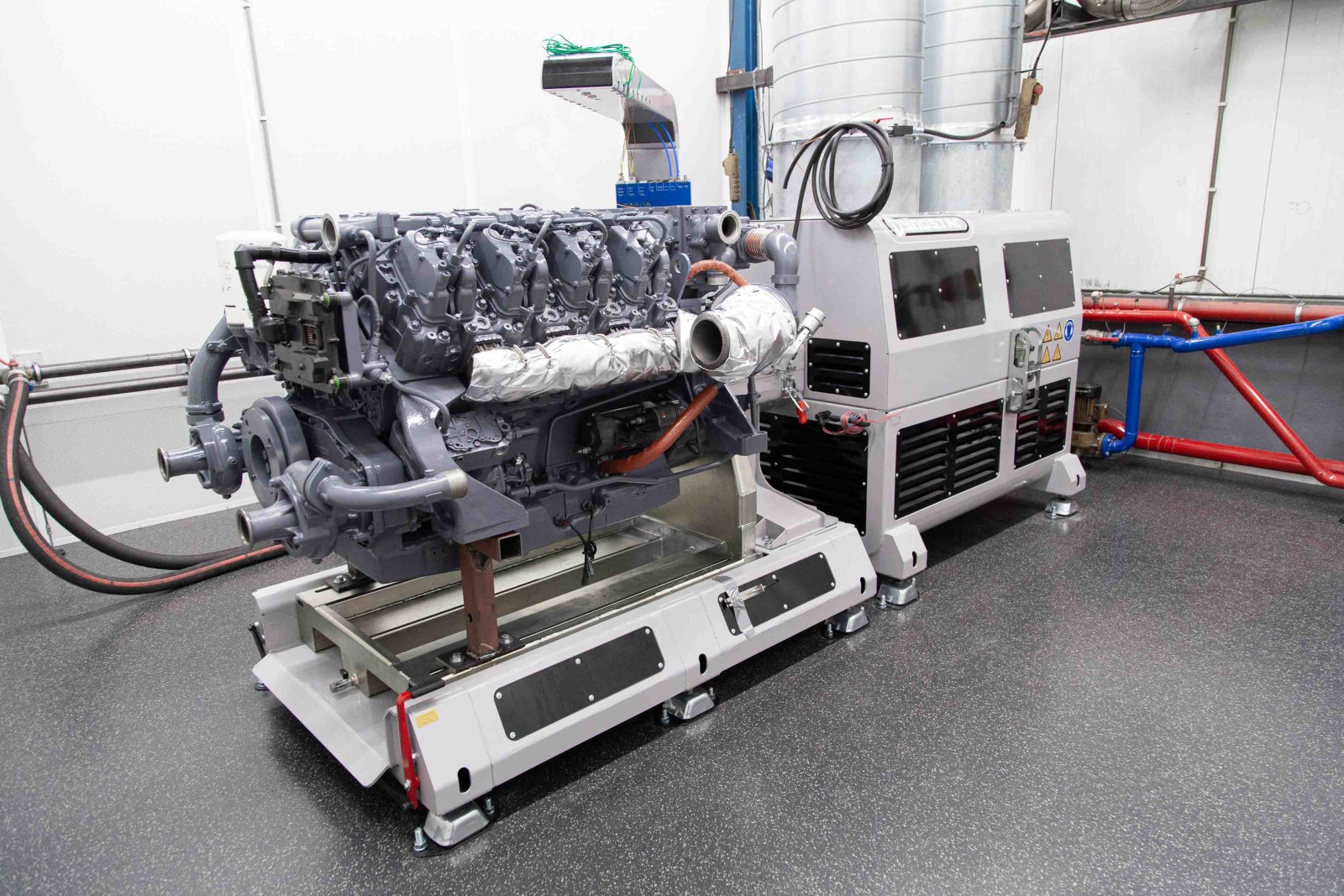

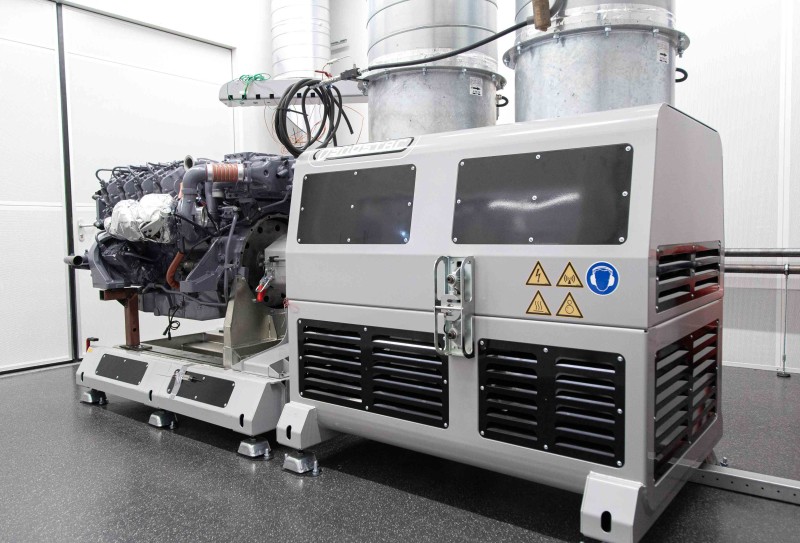

Heavy-Duty ETB76 Engine Dyno for Industrial Tuning & Development
Unleash the full potential of your engines with the ETB76 a heavy-duty industrial dynamometer built for performance, precision, and power. Engineered to tackle the most demanding applications, this robust dynamometer delivers up to 1250 kW of absorbed power and spins up to 5000 rpm, making it perfect for high-revving, high-performance engines.
Designed with superior materials and craftsmanship, the ETB76 ensures smooth, reliable operation, with all rotating components perfectly balanced inside a rugged, durable chassis. Whether you’re testing engine performance, fine-tuning, or developing cutting-edge powertrains, this versatile dyno is the ultimate workshop asset. Experience precision, speed, and strength all in one powerful package.

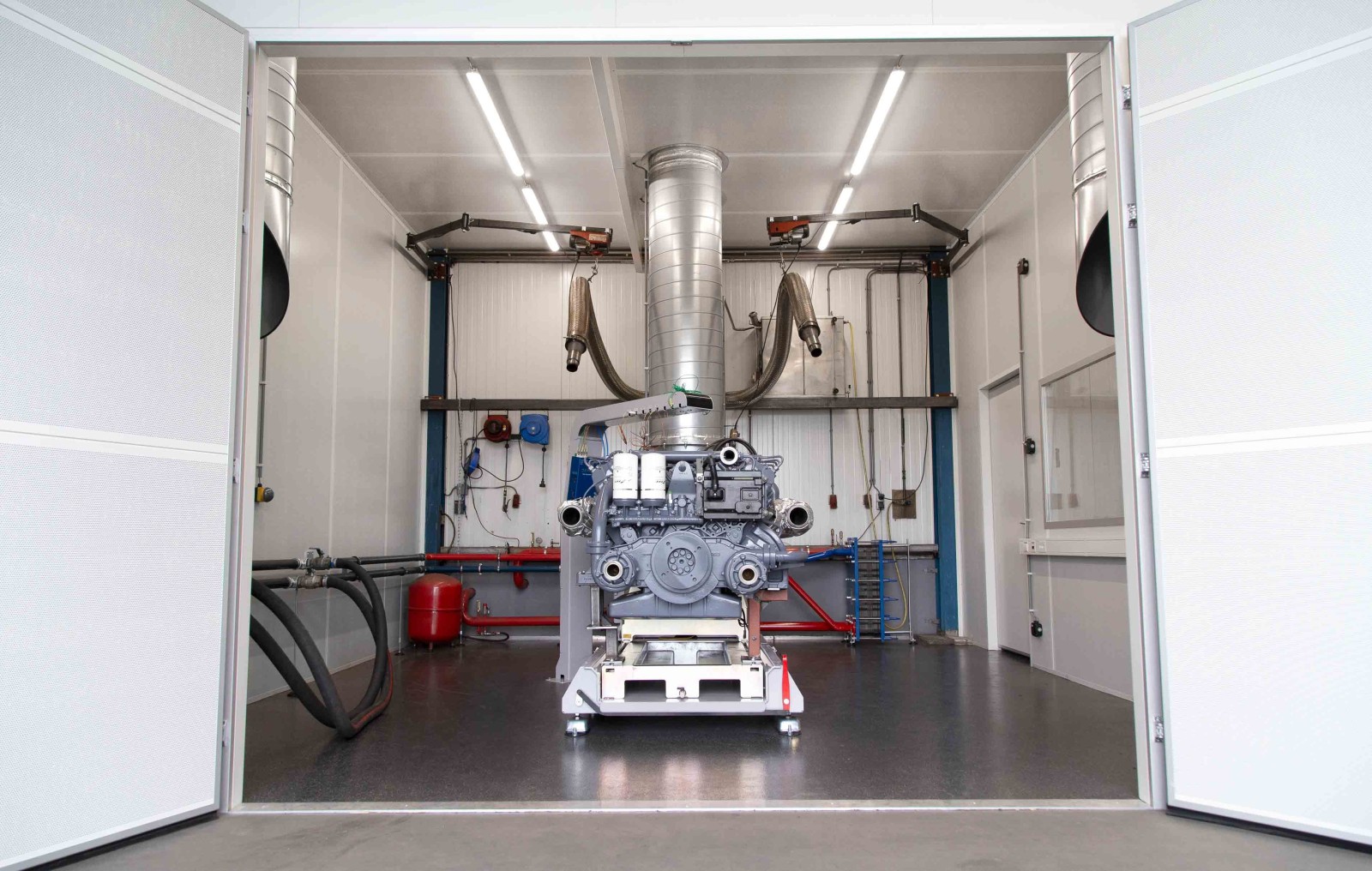

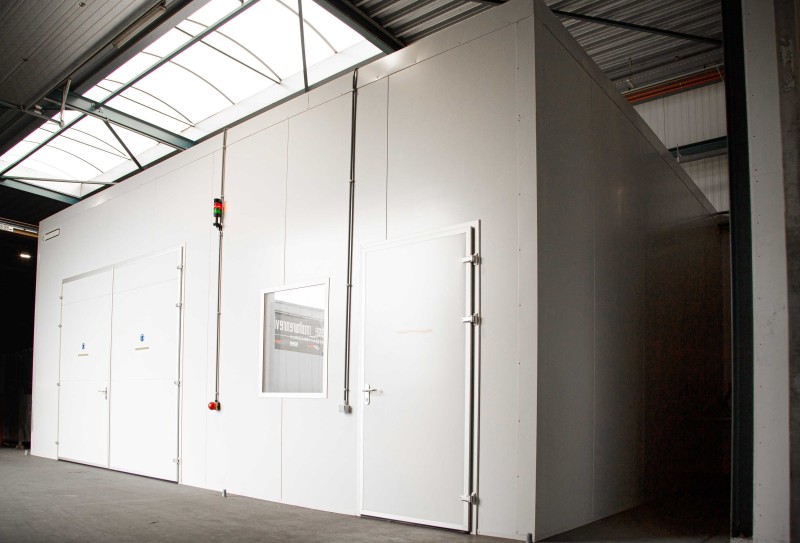

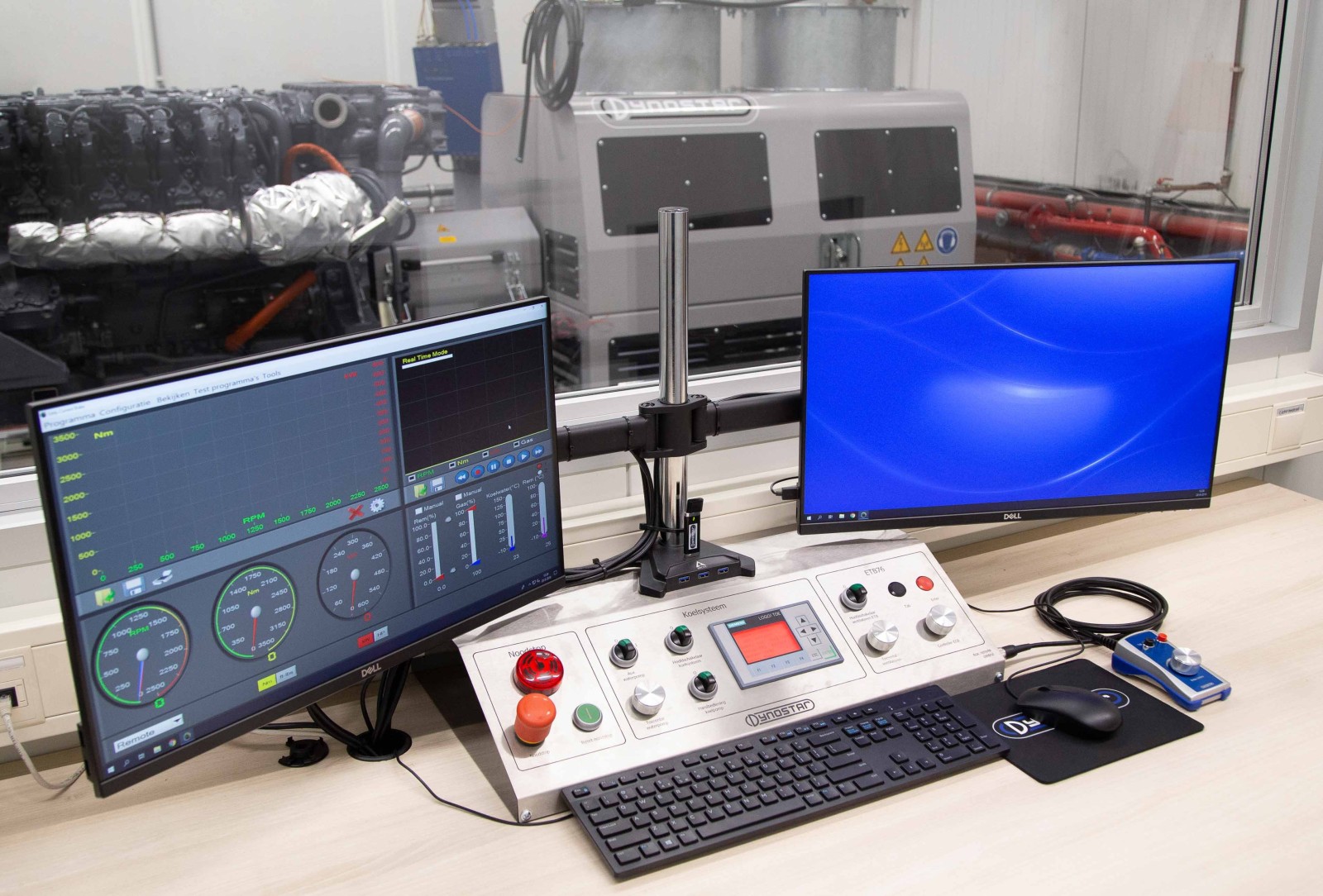

Custom testcell
Optionally Dynostar can design a customized testcell. With years of experience we can design and construct a bespoke test cell, equipped with all that’s necessary to create a healthy atmosphere in- and outside. As each test cell is unique, we always design it based on the demands and wishes of our customers.
| Weight: |
|---|
| Dimensions (lxwxh): |
| Max. consumed current: |
| Power requirements: |
| Max. RPM: |
| Total inertia: |
| Max. power cold: |
| Max. power continuous: |
| Max. torque cold: |
| Max. torque continuous: |
| Retarder disconnectable: |
| 1950 kg |
| 3500 x 1175 x 1370 m |
| 45 A (2x 22.5A) |
| 3x 400 V + N + PE, 32A |
| 5000 |
| 10,6 kgm2 |
| 1250 kW |
| 650 kW |
| 7600 Nm |
| 2900 Nm |
| Yes, rear retarder |
Technical specifications
