D70

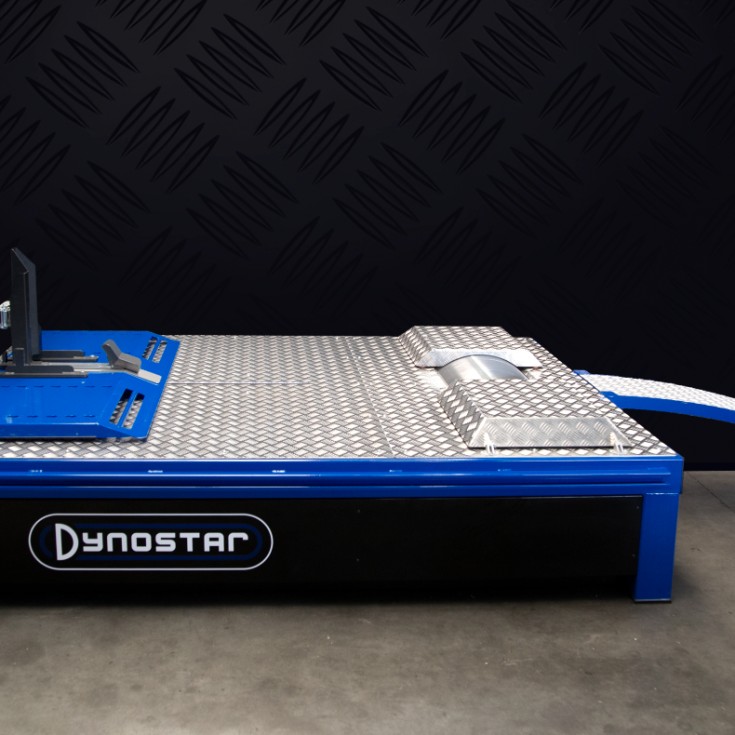

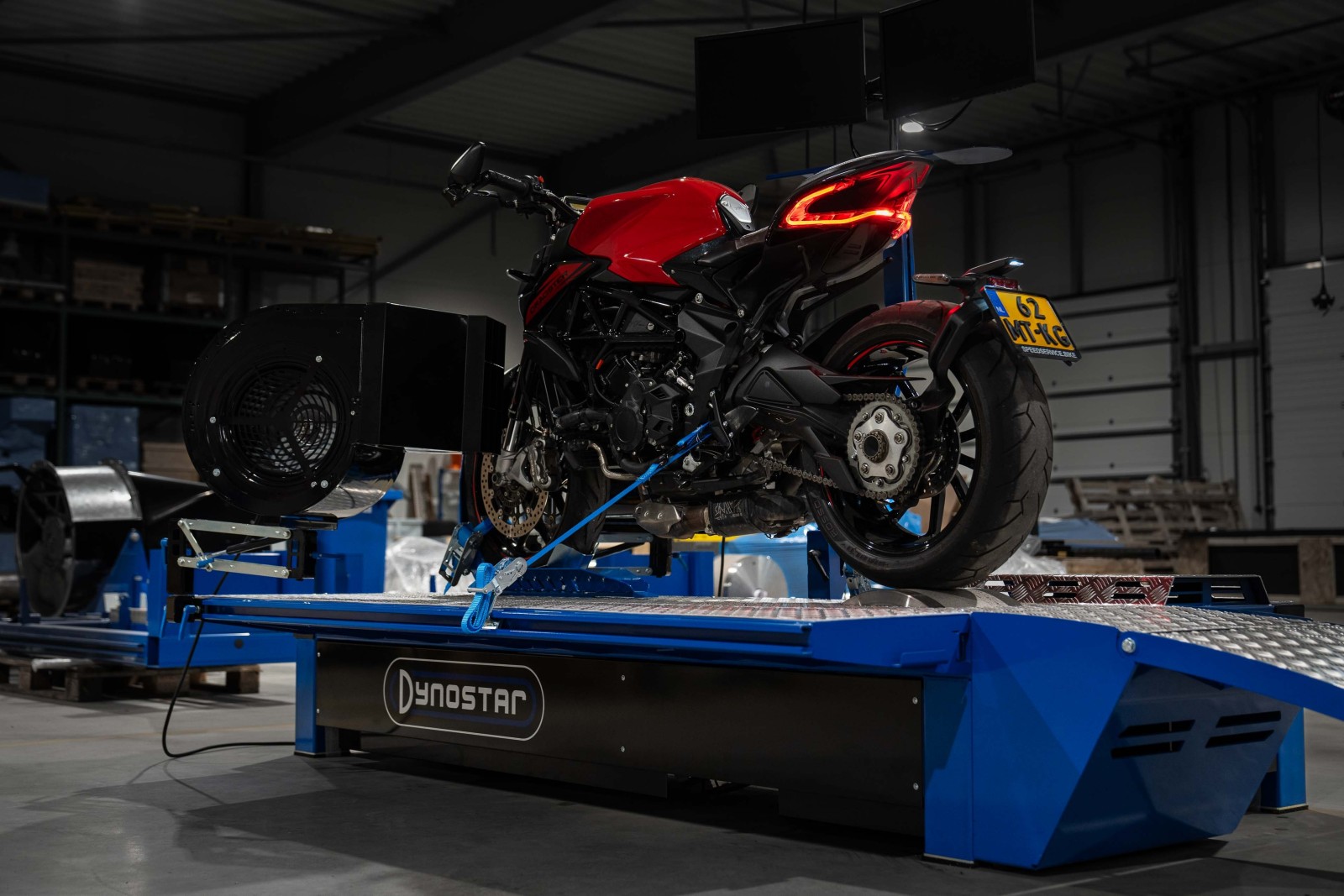

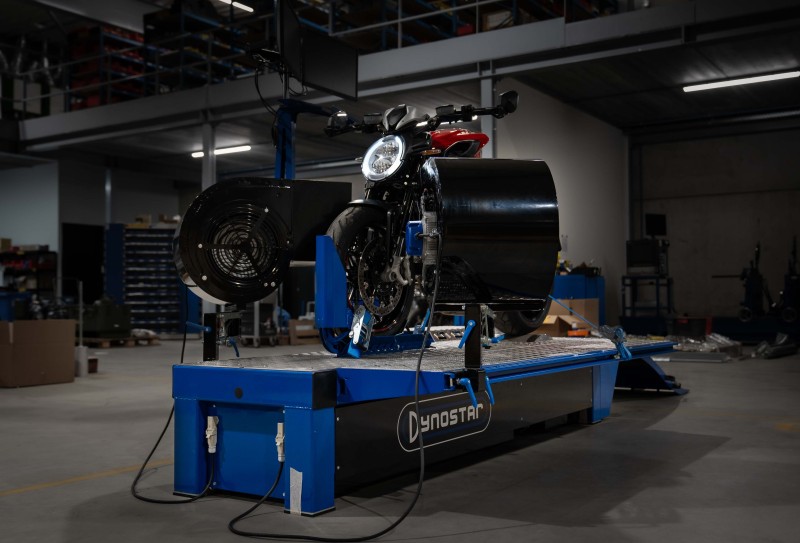

D70 – Precision Dyno Testing

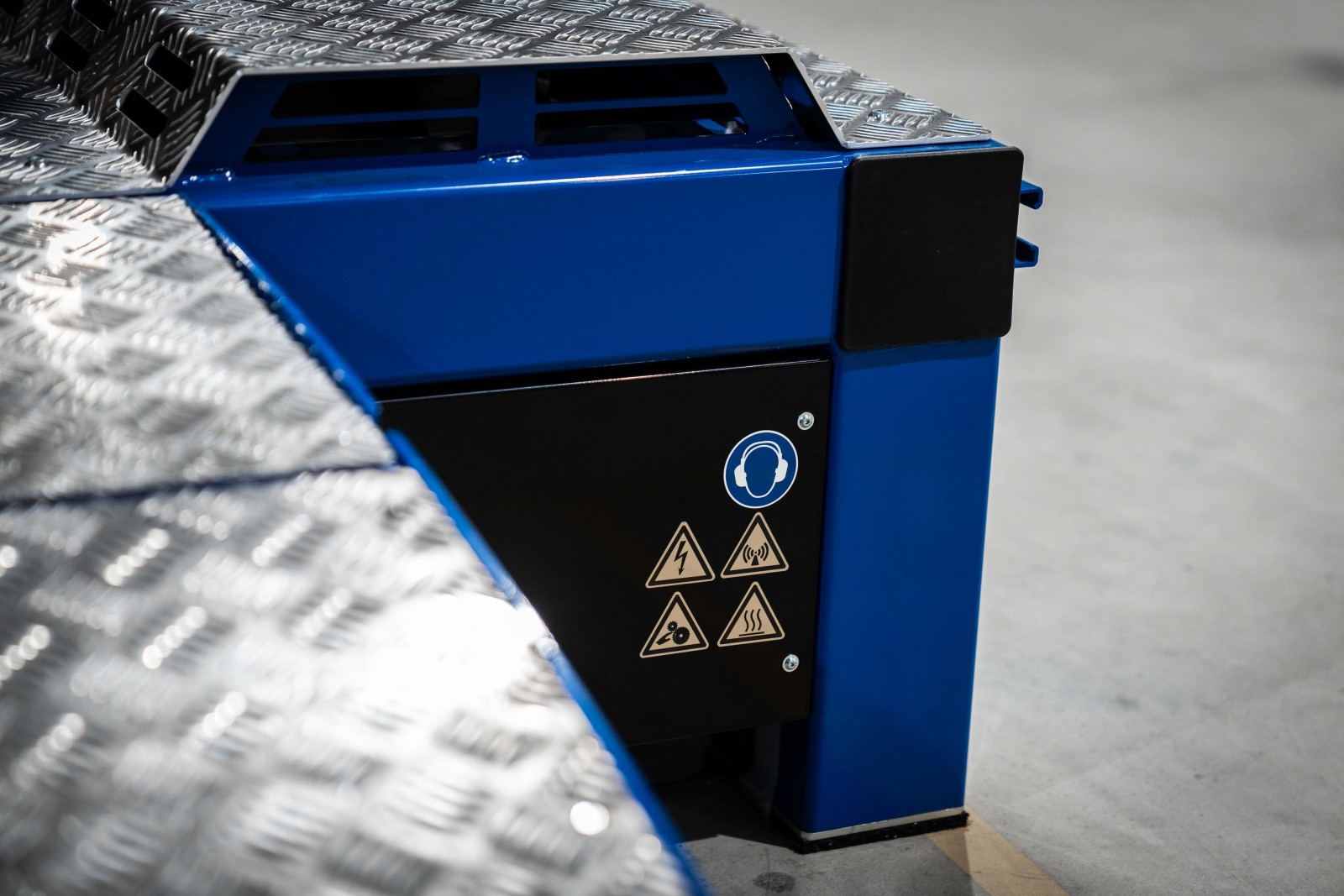

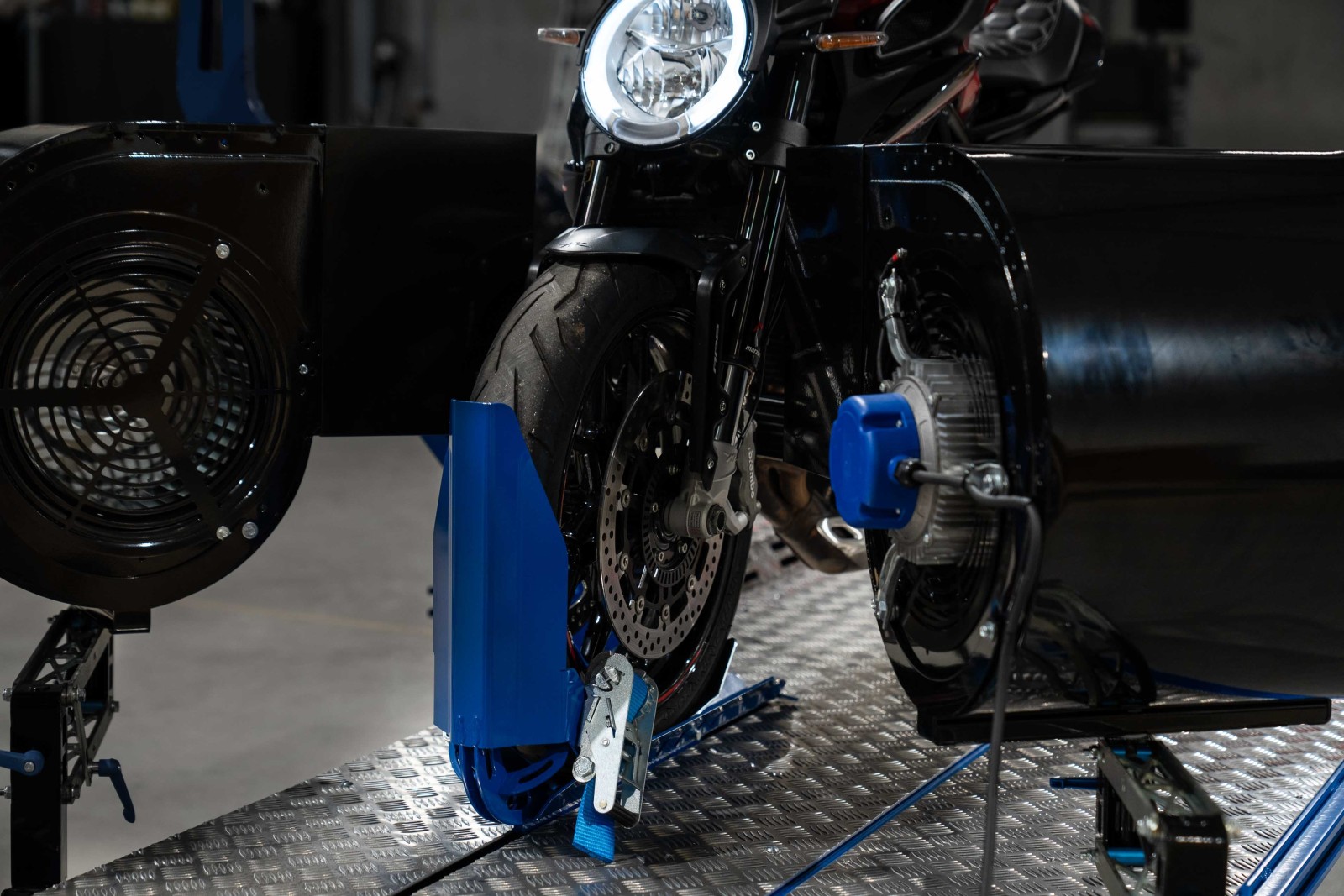

The D70 features a high-inertia drum and a rigid tubular steel frame with machined bearing posts for

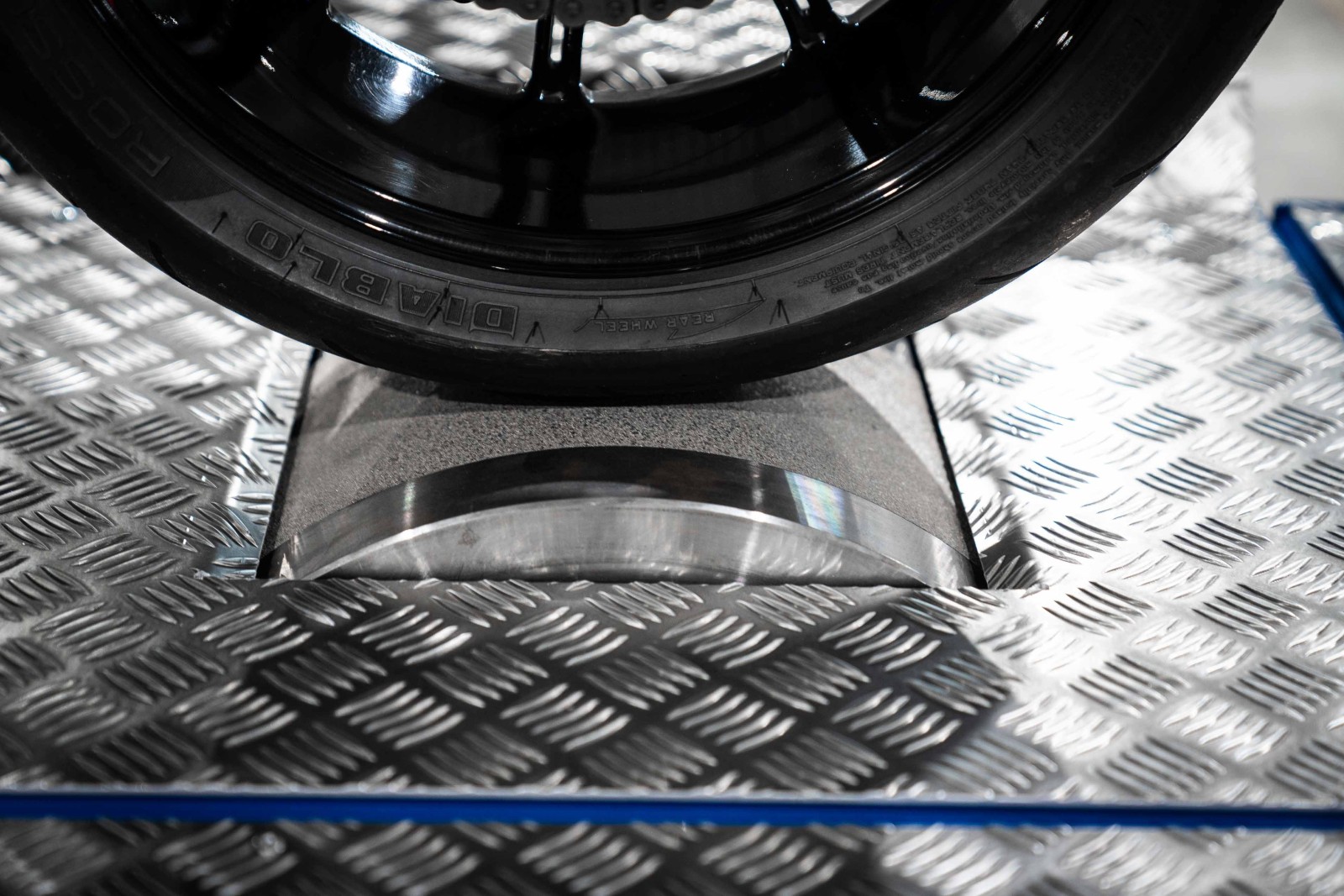

vibration-free operation. It measures up to 465 kW dynamically and supports speeds up to 325 km/h. Its air-cooled eddy current brake absorbs up to 355 kW. The Tungsten carbide coated drum ensures optimal traction during ridged testing.

D70Ti – Adjustable Inertia for All Bikes

The D70Ti offers the same precision as the D70 but includes a three-piece drum, allowing operators to adjust drum inertia to the motorcycle tested. From small bikes to high-powered superbikes, the D70Ti delivers versatile, professional-grade testing.

D70-E - Electric Edition – Drive Cycle Ready

The D70-E is designed for modern testing requirements. It supports WLTP, NEDC, and other drive cycles via Dynostar ADS software. With an 18.5 kW electric motor, the D70-E enables regenerative braking tests, coast-down calibration, and precise power measurements under realistic conditions.

Standard hardware features:

• DAS Data Acquisition System
• Advanced Dyno Station Software package
• Junction Box
• 37-pin cable (length 7 m)
• RS232 cable (length 3 m)
• Calibration weight
• Remote control (length 2.5 m)

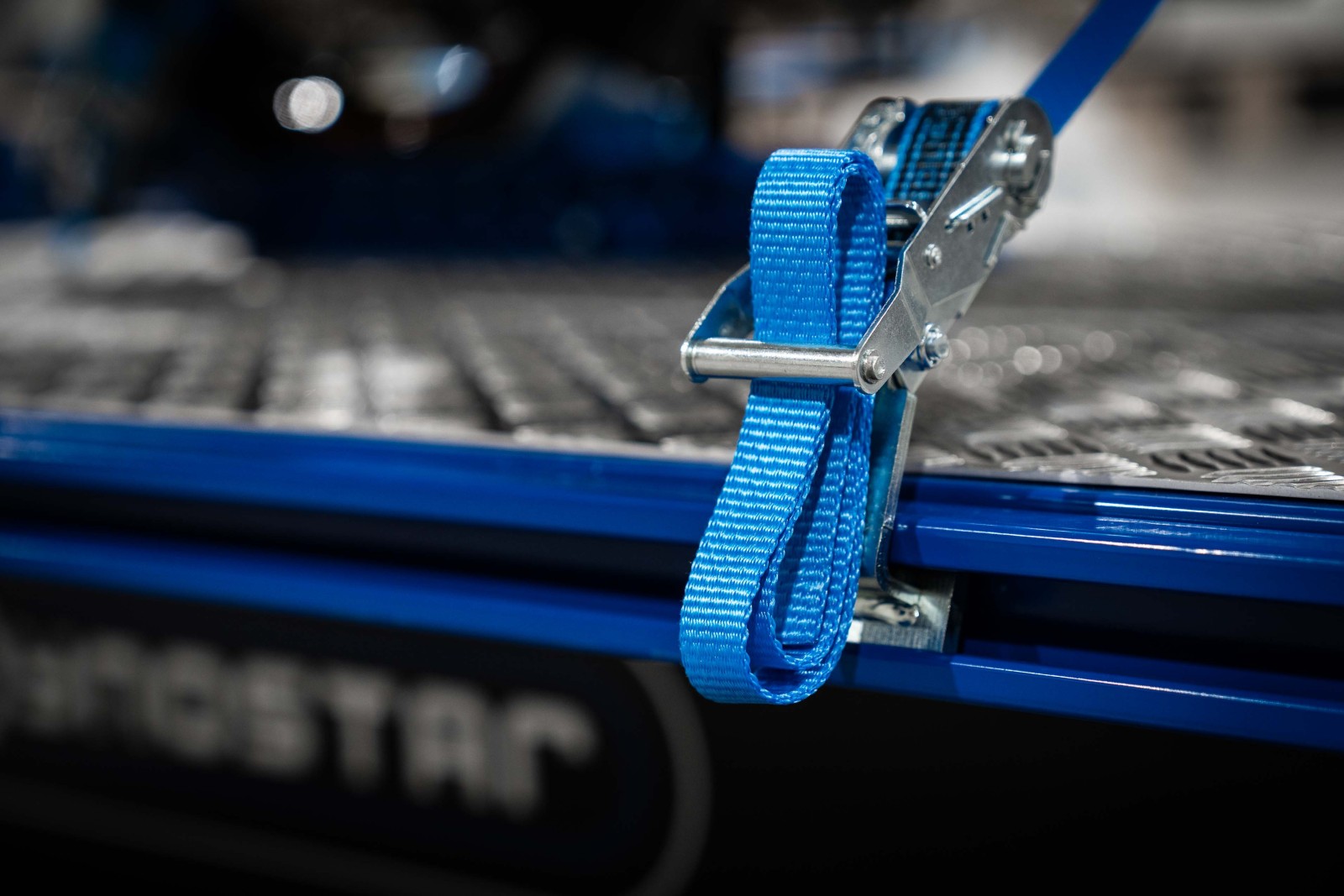

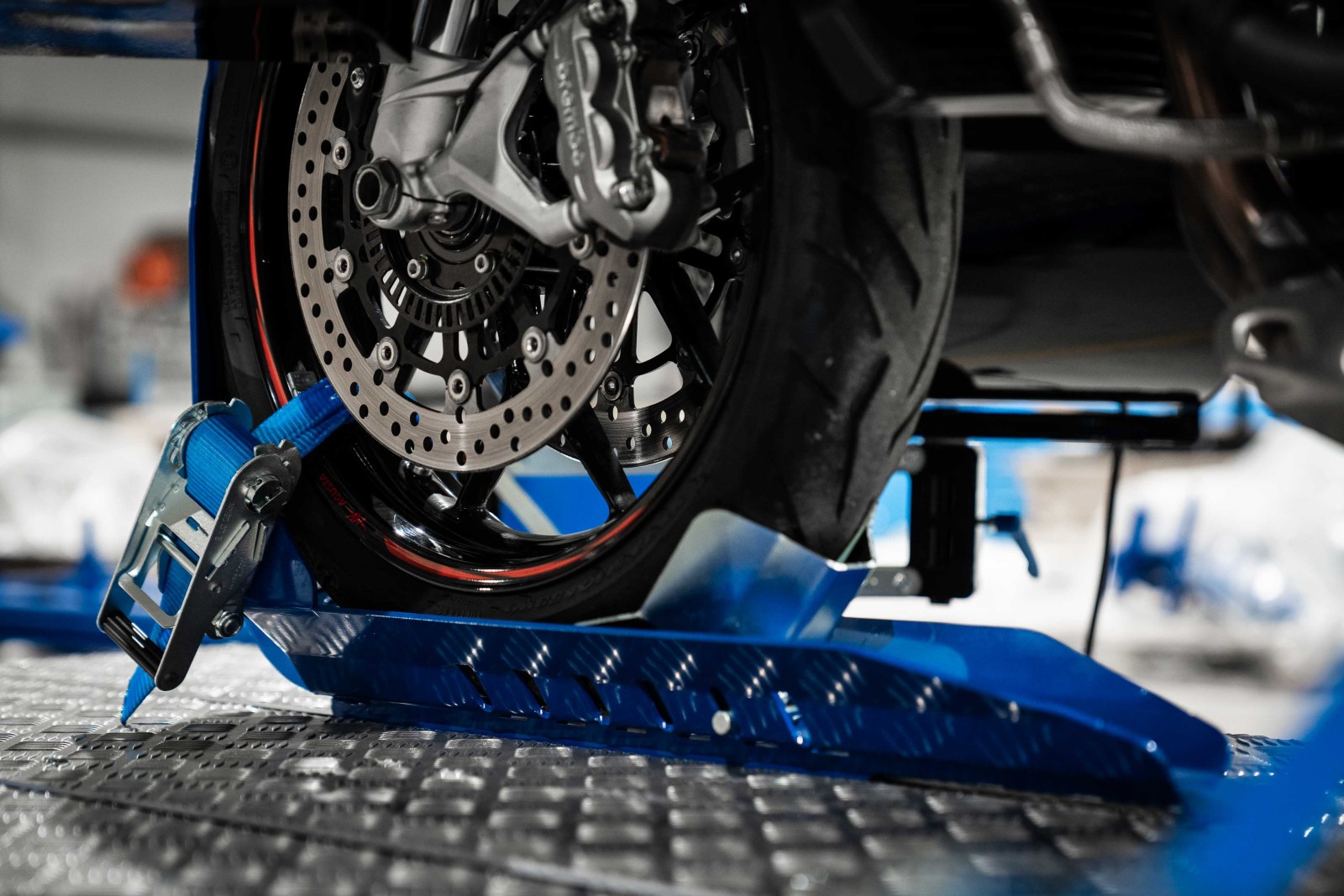

• Straps (2 pcs)
• Instructions
• CE marking
• Emergency brake
• EMC filter

Standard software features:

• Static power measurement
• Dynamic power measurement: Roll on, Negative test, All gear, Variable transmission,
  Fast acceleration, Multiple speed
• Acceleration test
• Speedometer test
• Weather station
• Power correction to DIN, EEC and SAE standard
• Automatic braking after completing dynamic test
• Real time display of engine speed, power, traction and vehicle speed in software
• Simulation of roller and air resistances for simulating situations on the road
• Automatic calculation of losses in the drive line and calculation of power at crankshaft
