Two-wheelers

D50

300 Km/h
120 kW

The ideal platform for mainstream motorbikes

Whether you would like to tune or perform diagnostics on light motorcycles and scooters, the Dynostar D50 models are perfect for you. Many reputable companies in the trade, including 12-times World Champion Ten Kate Honda, have already discovered the quality of the Dynostar products.



Folder-D50-EN.pdf
1.76MB
 Request a free quote

The D50i is an inertia based dyno, with a secondary inertia std fitted for flexible testing a wide range of vehicles. The D50ECB is an upgraded D50i, equipped with a 400Nm eddy current brake. This brake can always be added afterwards to a D50i. Motorcycles and scooters up to 150 hp can easily be tested on the D50i and on the D50ECB up to 160 hp.

For both the models D50i and D50ECB, the ramp and front wheel support are standard features.

D50ECB

Weight: : 500 [kg] - 1102 [lbs]
Dimensions (lxwxh): : 2,21 x 0,89 x 0,75 [m] - 62 x 134 x 34 [inch]
Power requirements: : 230 [VAC+PE]
Max. consumed current: : 16 [A] 50-60 [Hz]
Air requirements: : 6 [bar]
Max. speed: : 300 [kmh] - 186 [mph]
Drum width: : 0,25 [m] - 9,8 [inch]
Drum diameter: : 0,39 [m]- 15,4 [inch]
Number of drums : 1
Total mass inertia: : 4,7 [kg/m²]
Equivalent vehicle mass: : 124 [kg] - 273 [lbs]
Max. dynamic power: : 120 [kW] - 160 [Hp]
Max. static power cold: : 120 [kW] - 160 [Hp]
Max. static power continuous: : 43 [kW] - 58 [Hp]

Technical specifications

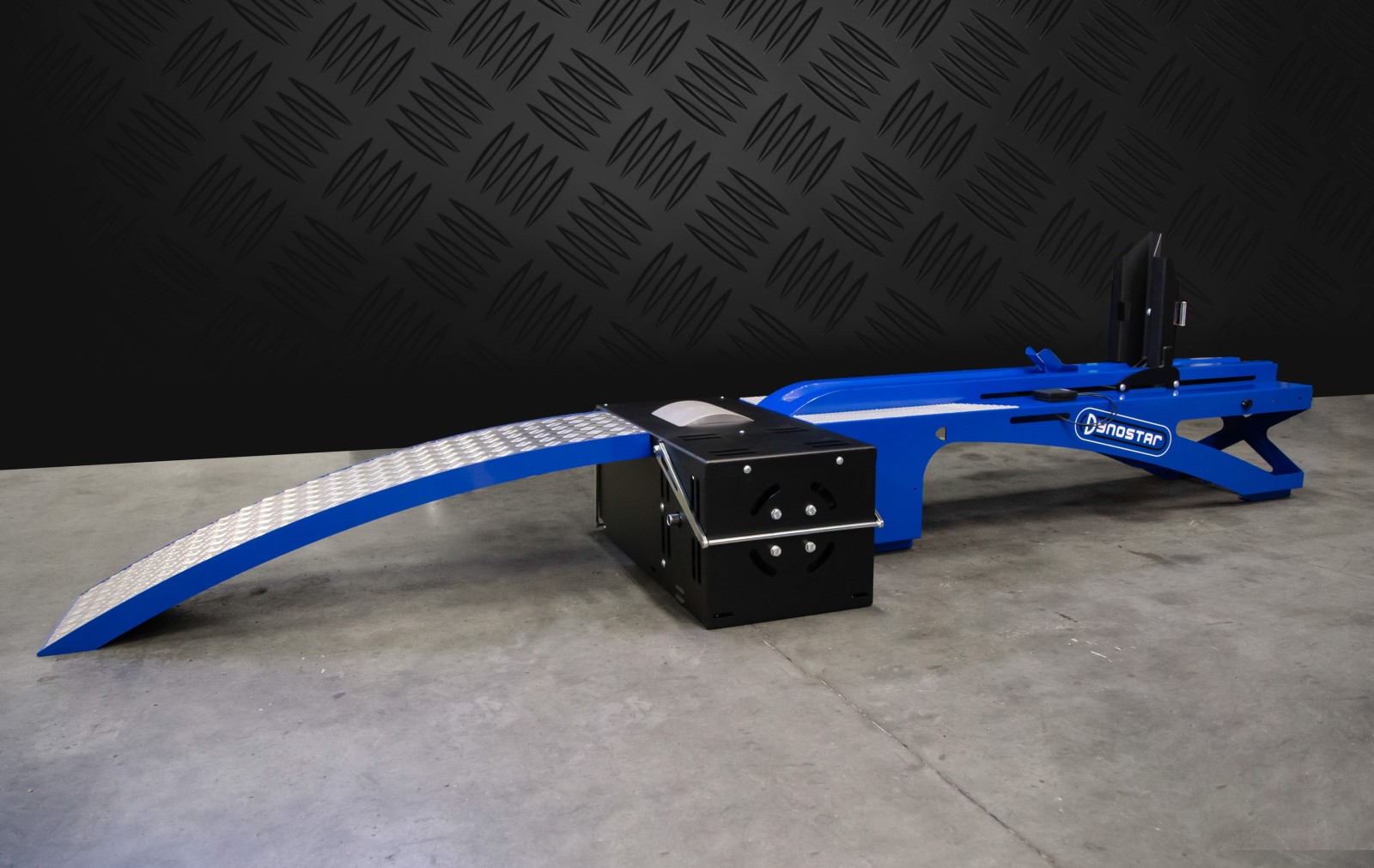

A009-52

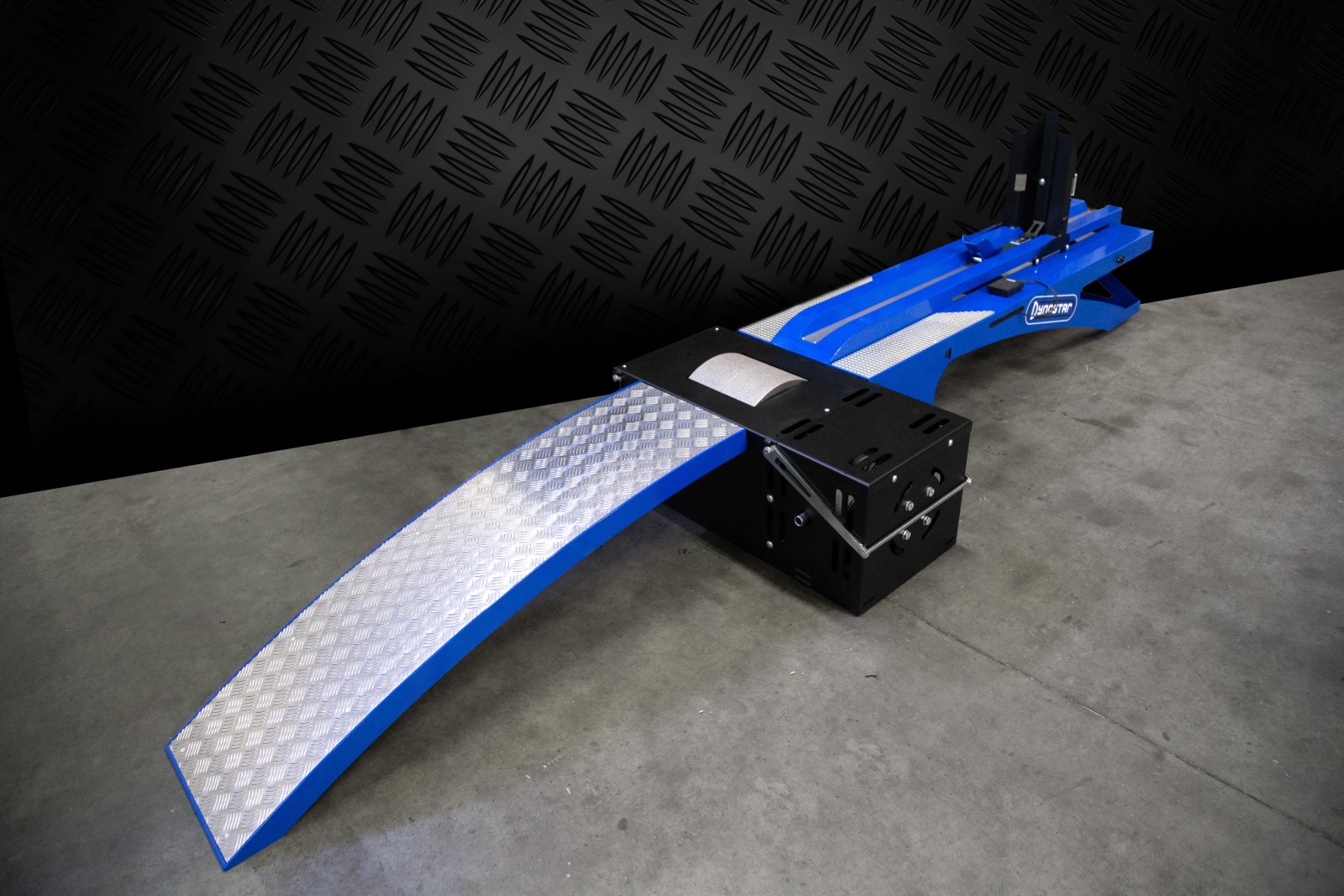

A009

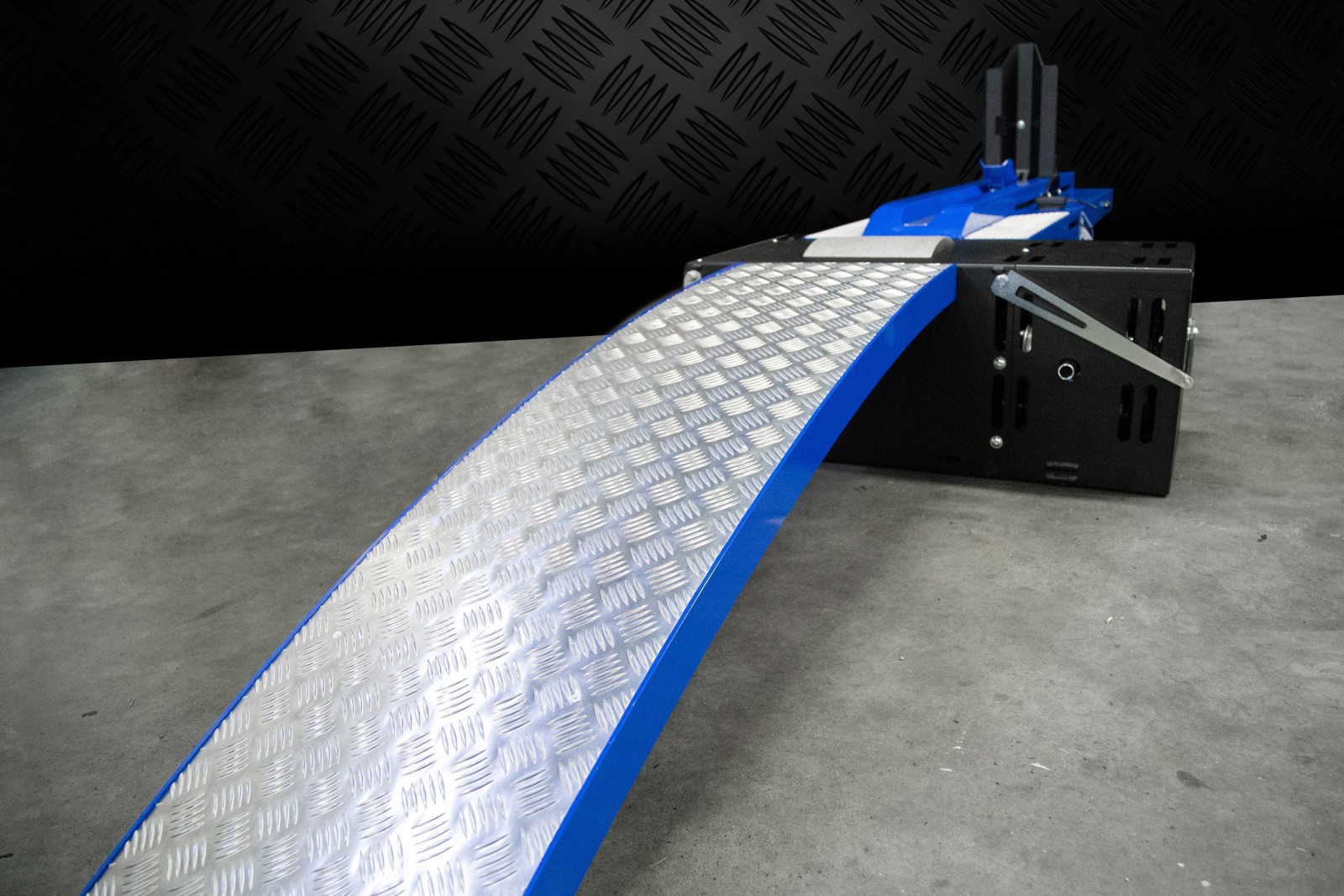

A009-2

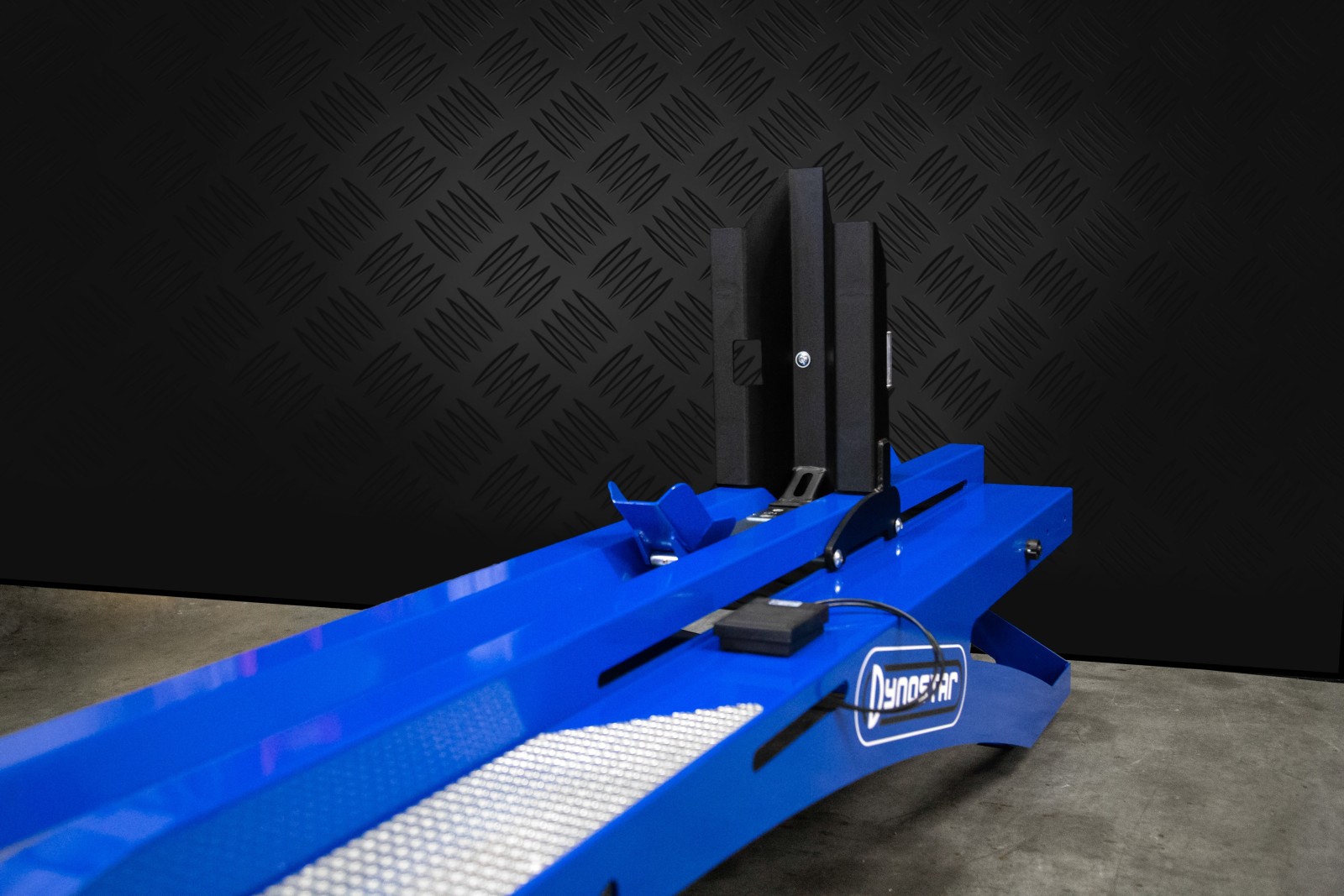

A009-4

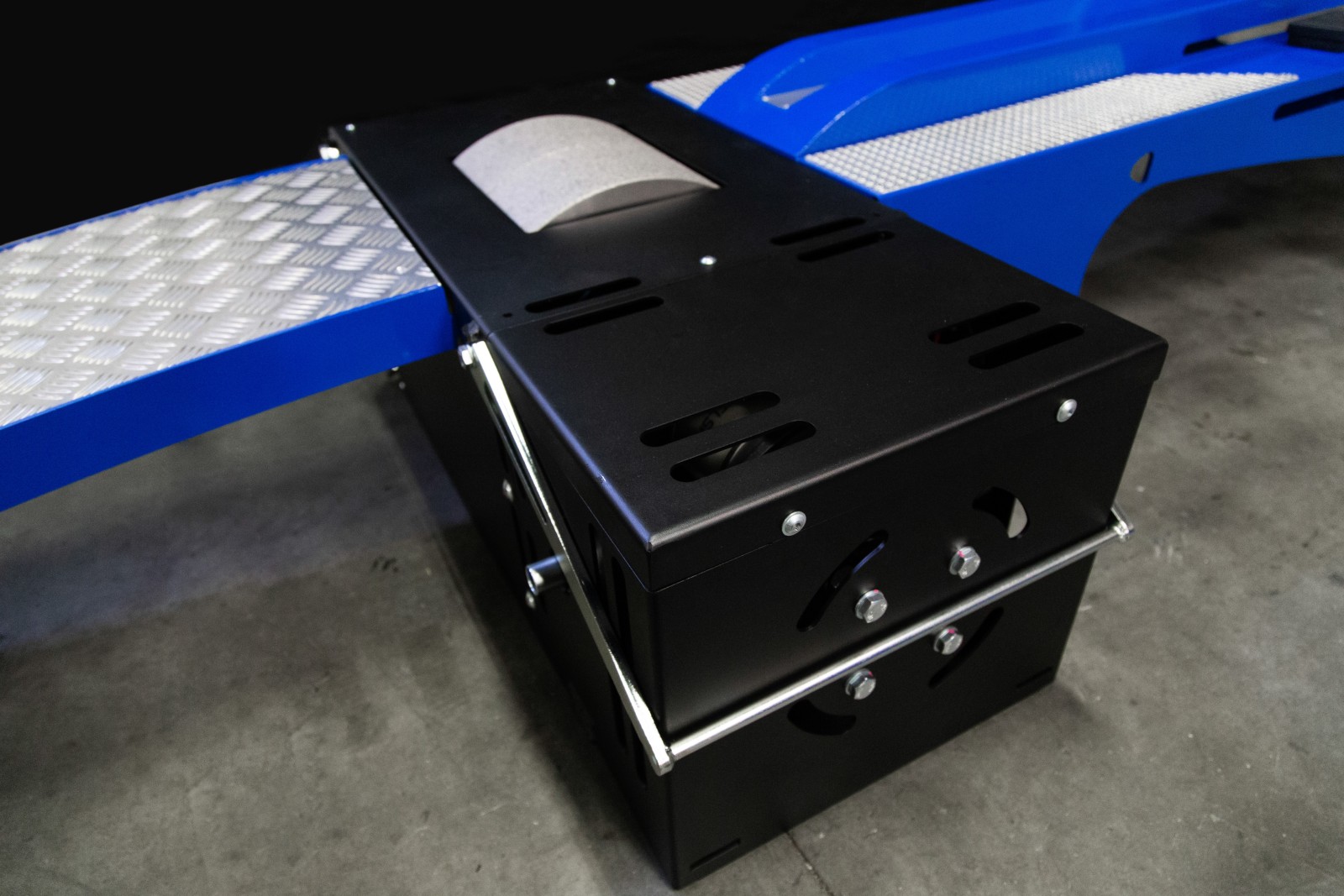

A009-1

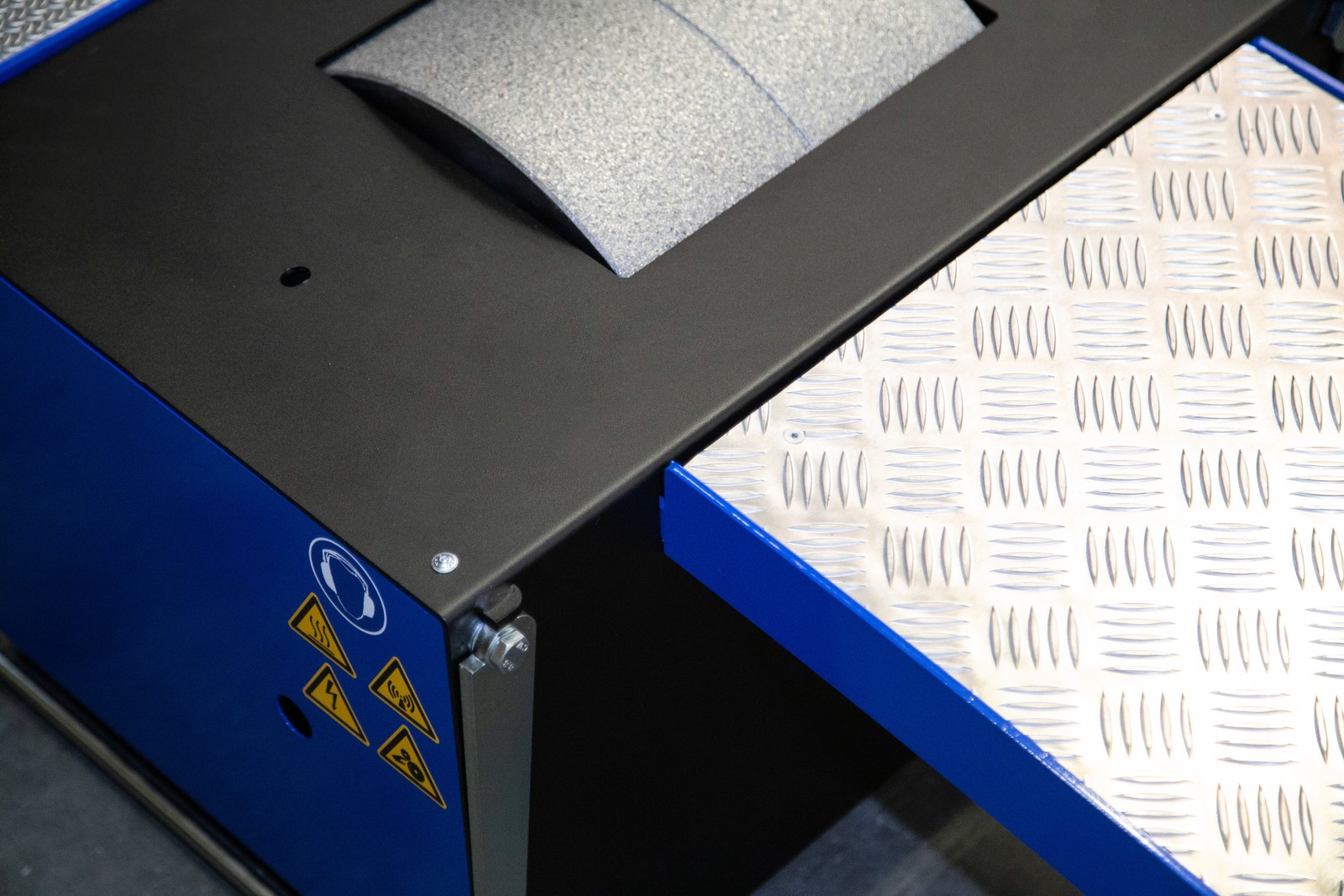

A009-3

D50I

Weight: : 400 kg
Dimensions (lxwxh): : 2,21 x 0,62 x 0,75 m
Power requirements: : 230 VAC+PE
Max. consumed power: : 2 A 50-60 Hz
Air requirements: : 6 bar
Max. speed: : 300 kph
Drum width: : 0,25 m
Drum diameter: : 0,39 m
Total mass inertia: : 4,43 kg/m²
Equivalent vehicle mass: : 117 kg
Max. dynamic power: : 112 kW

Technical specifications

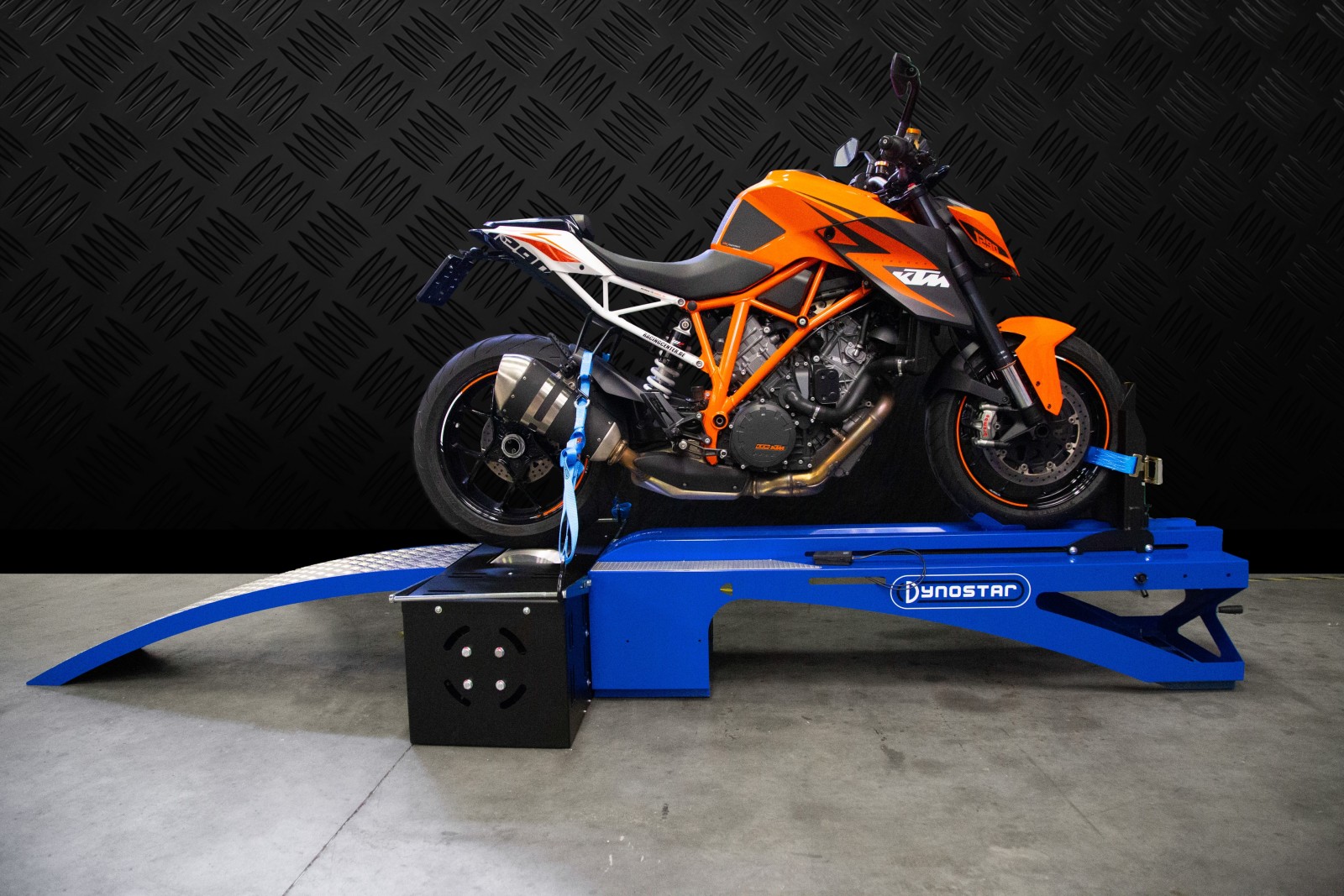

IMG_4227

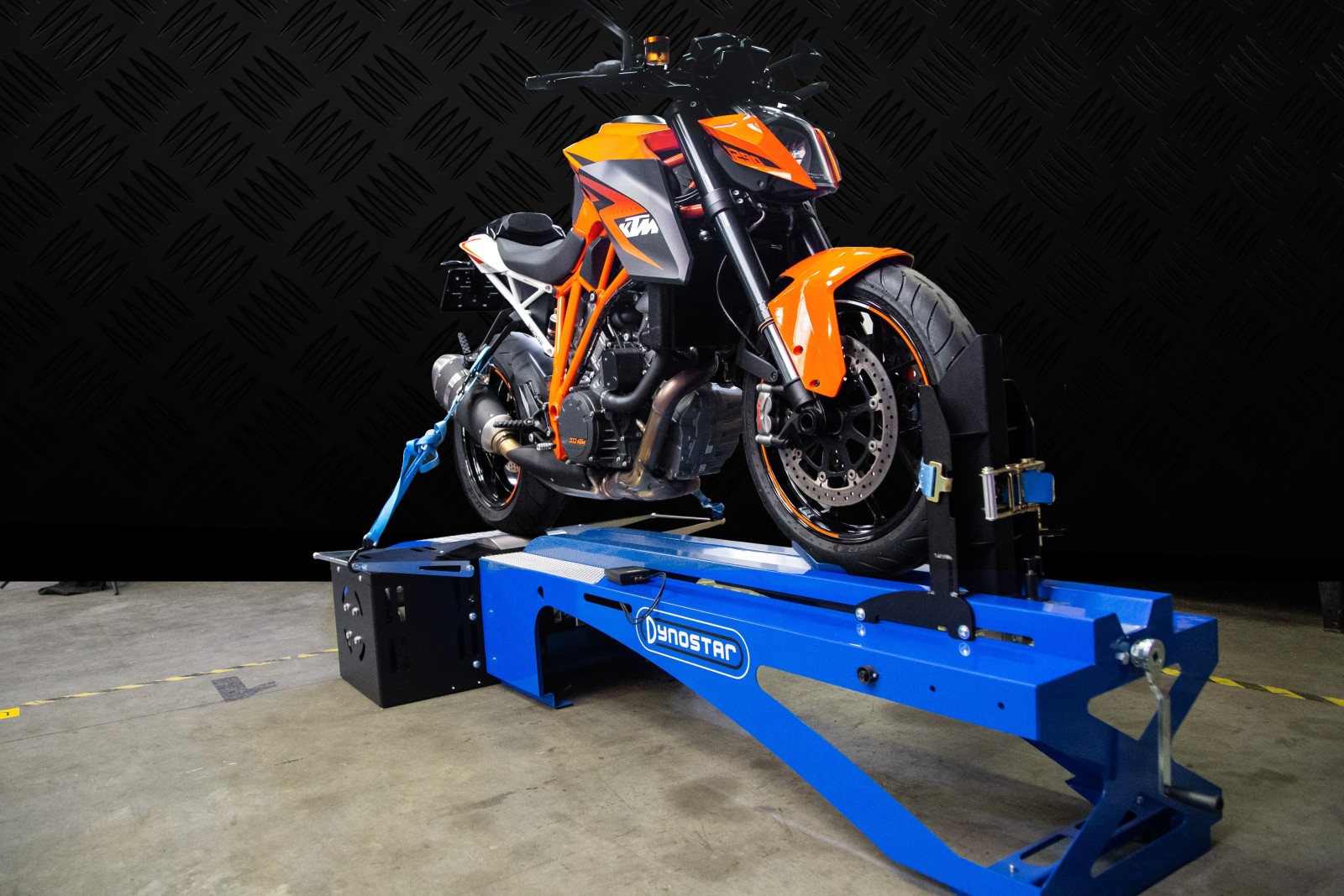

IMG_4263

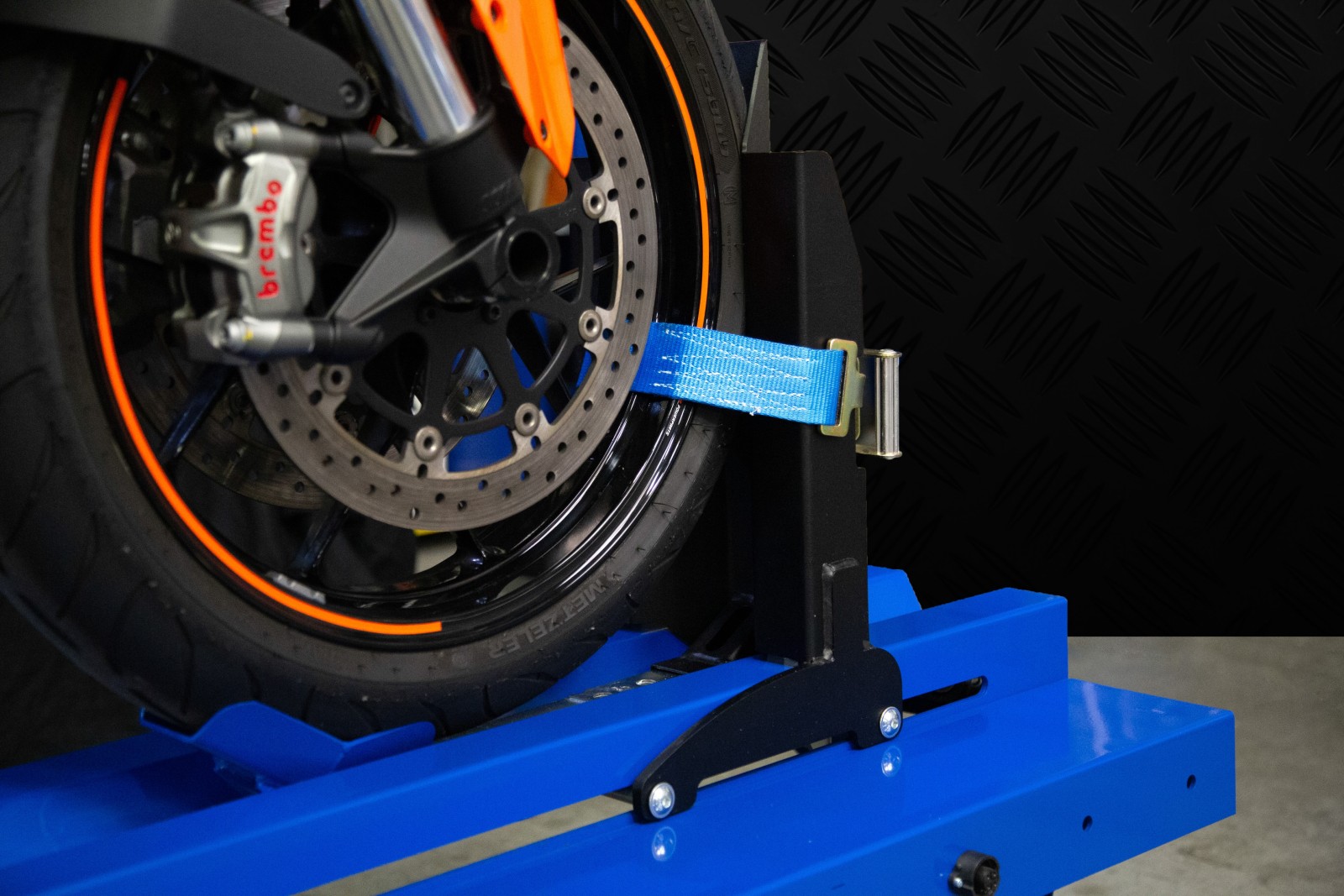

IMG_4256

Standard hardware features:

  • MiniDAS Data Acquisition System
  • Advanced Dyno Station Software package
  • RS232 cable (length 3 m)
  • Calibration weight (D50ECB only)
  • Remote control (length 2.5 m)
  • Straps (2 pcs)
  • Instructions
  • CE marking
  • Emergency brake
  • EMC filter

Standard software features:

  • Static power measurement (D50ECB only)
  • Dynamic power measurement: Roll on, Negative test, All gear, Variable transmission,
    Fast acceleration, Multiple speed
  • Acceleration test
  • Speedometer test
  • Weather station
  • Power correction to DIN, EEC and SAE standard
  • Automatic braking after completing dynamic test (D50ECB only)
  • Real time display of engine speed, power, traction and vehicle speed in software
  • Simulation of roller and air resistances for simulating situations on the road
  • Automatic calculation of losses in the drive line and calculation of power at crankshaft
