Two-wheelers

2C

Name: Dynostar
Rating: 5 (7 reviews)

200 kmh

62.8 kW

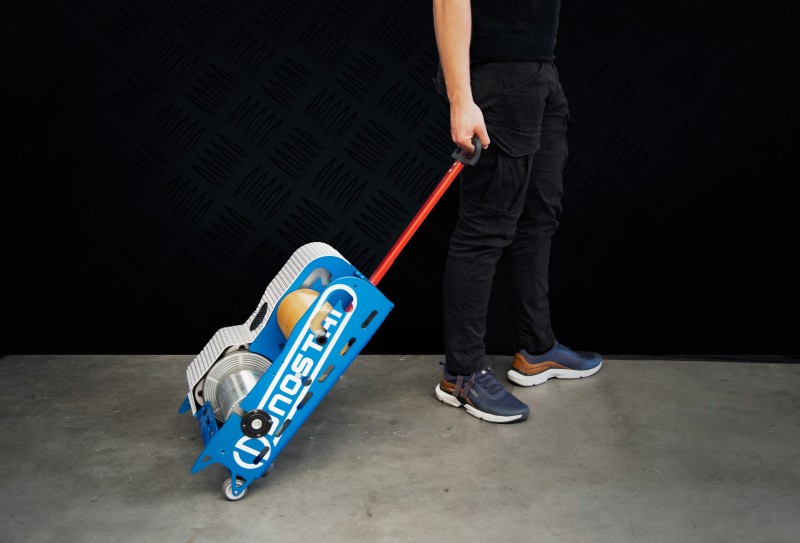

NEXT LEVEL PORTABILITY

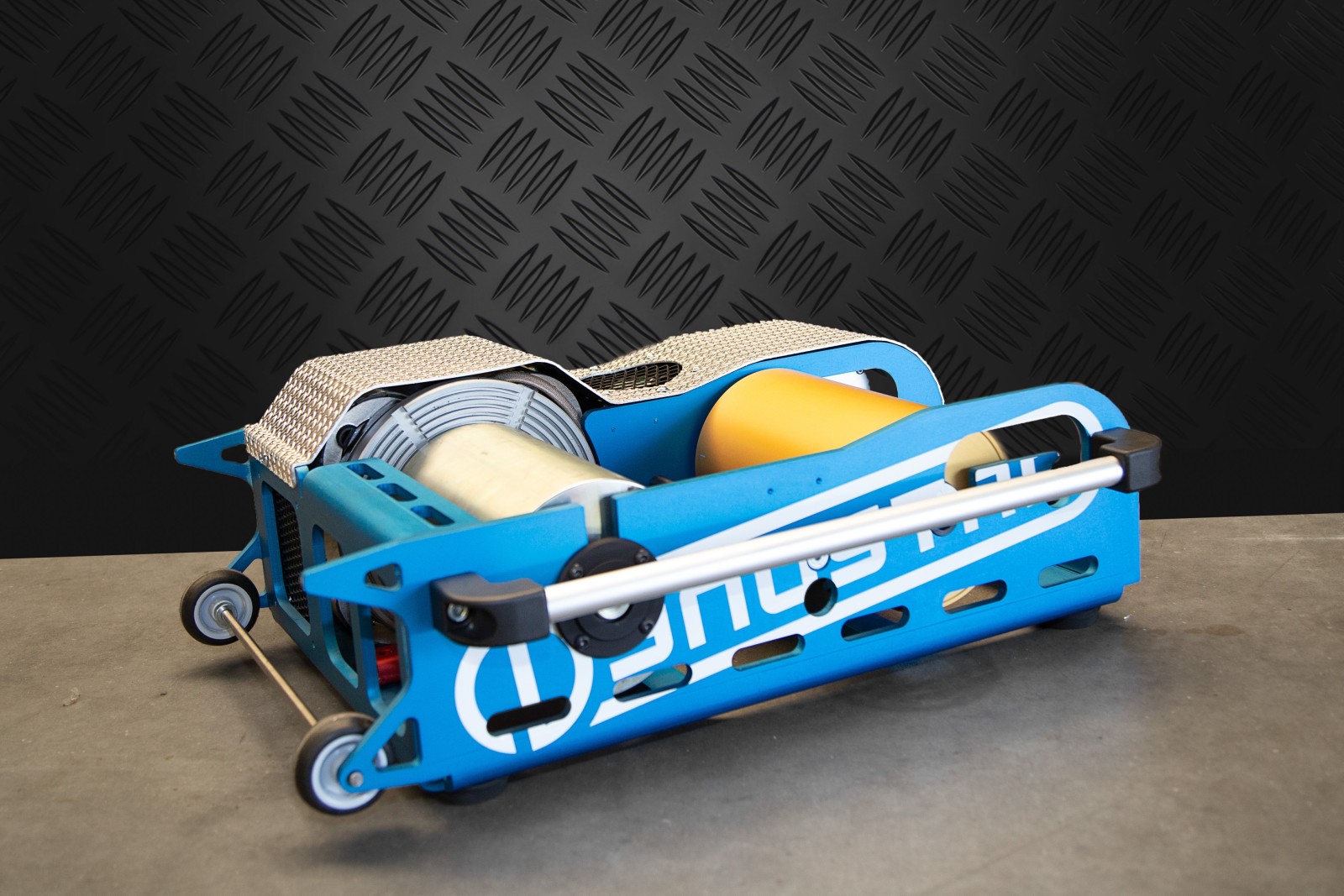

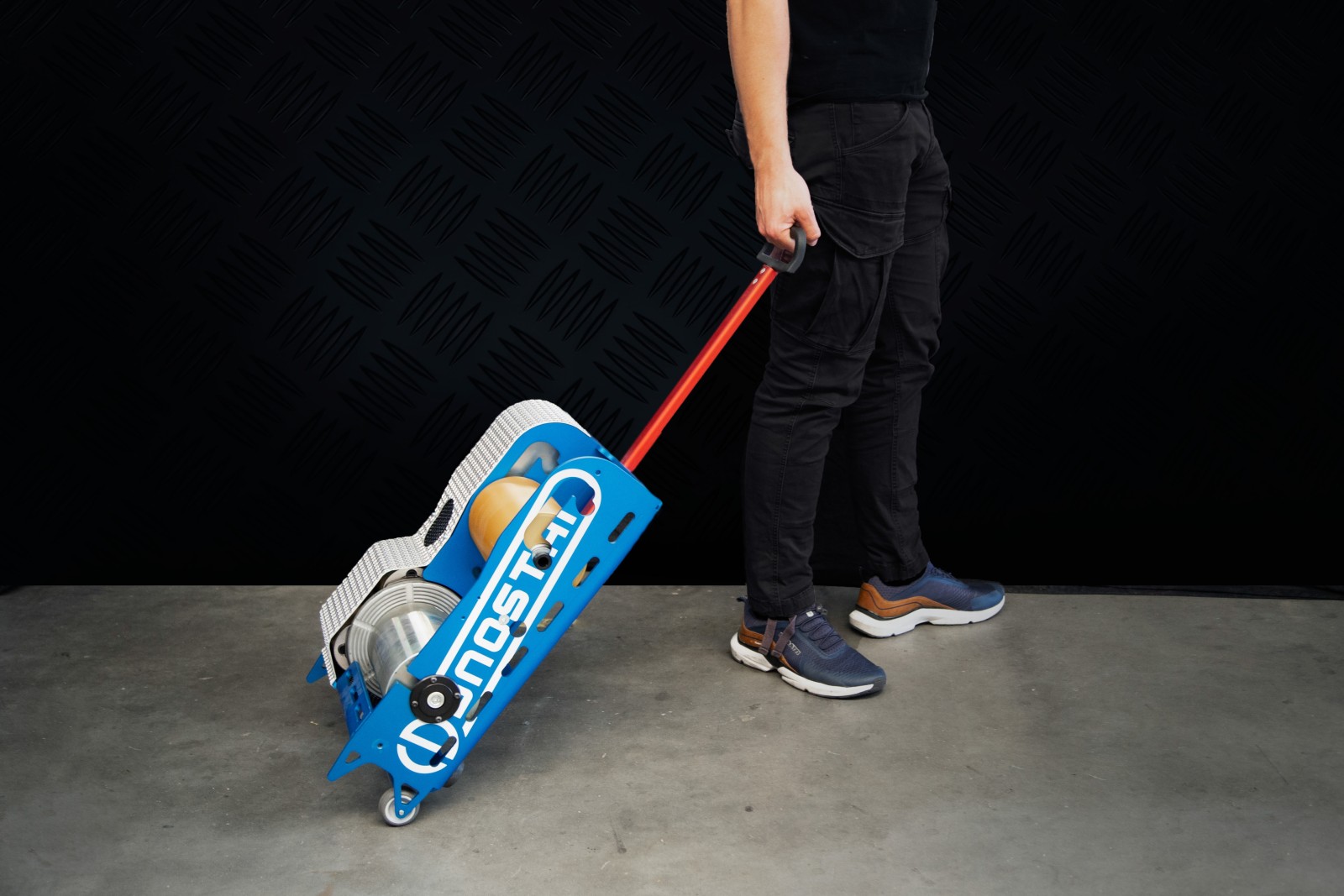

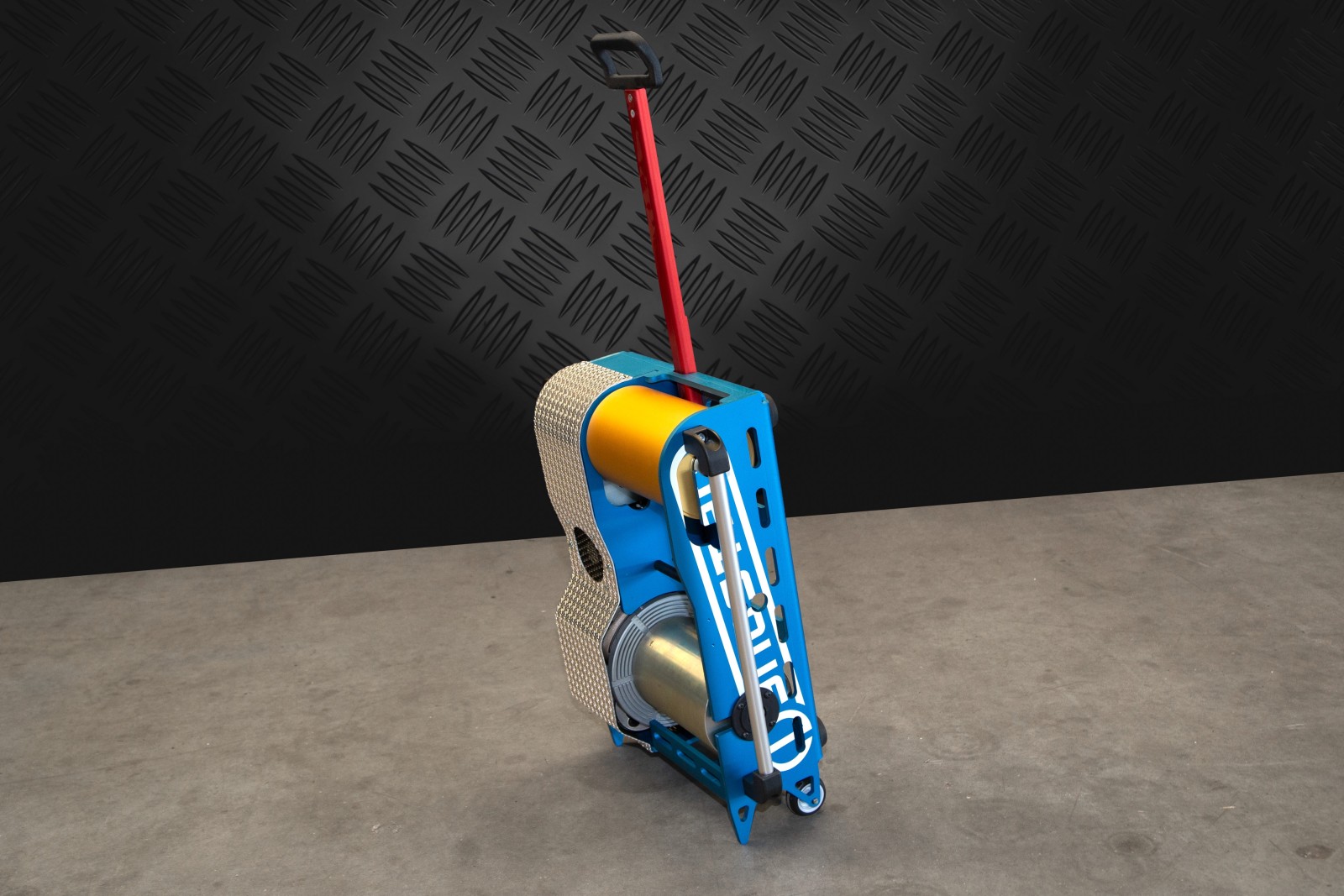

With this compact Dynostar model 2C you can test e-scooters, e-bikes, mopeds and light motorcycles at every location. Supplied with a tough Explorer suitcase, that integrates the DAQ and cables and optionally a laptop. It’s the ideal platform for those who require a mobile solution for testing.

Folder-2CMK2-EN.pdf

12.87MB

Request a free quote

this portable dynamometer is besides a tuning tool also a valuable diagnostic tool.

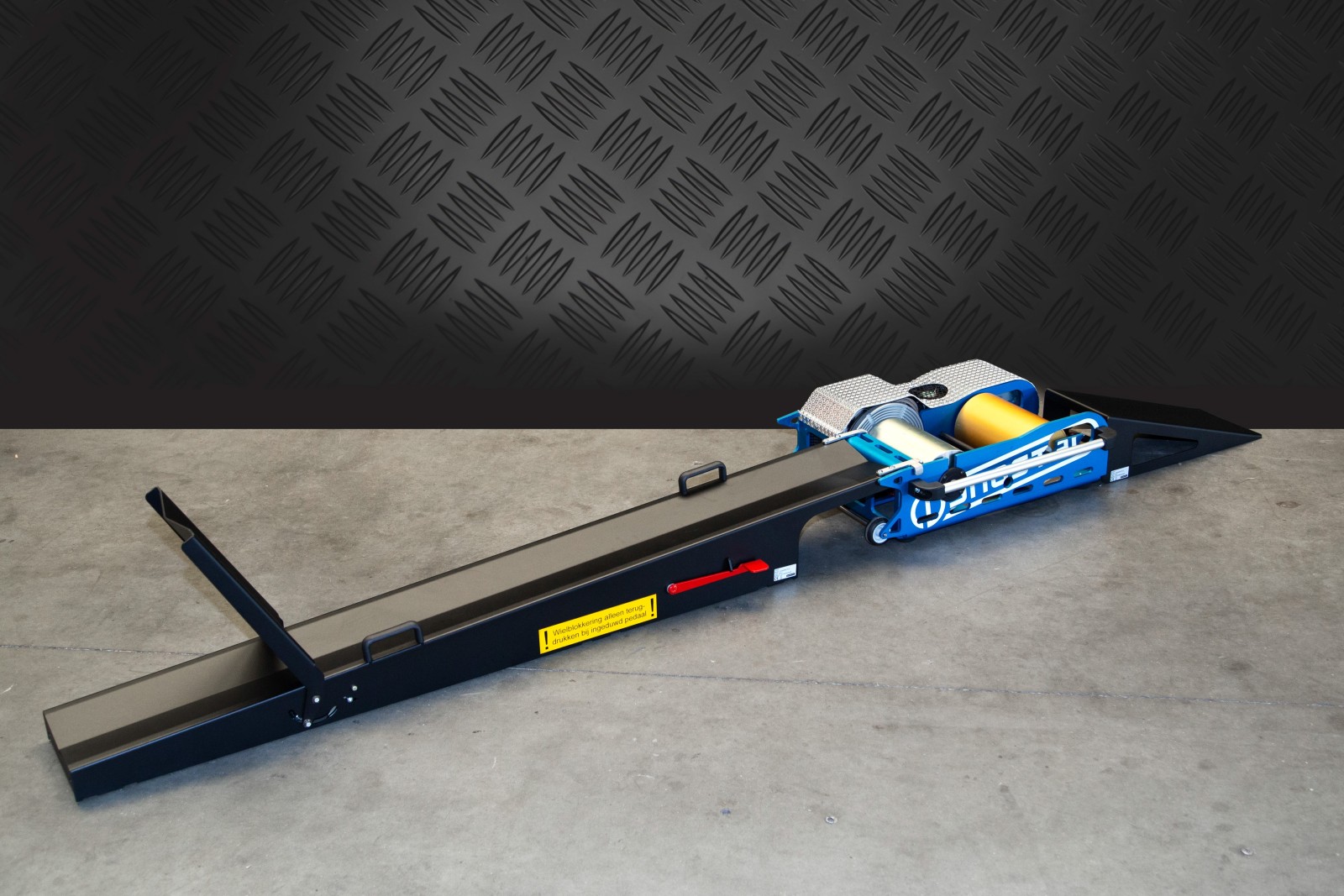

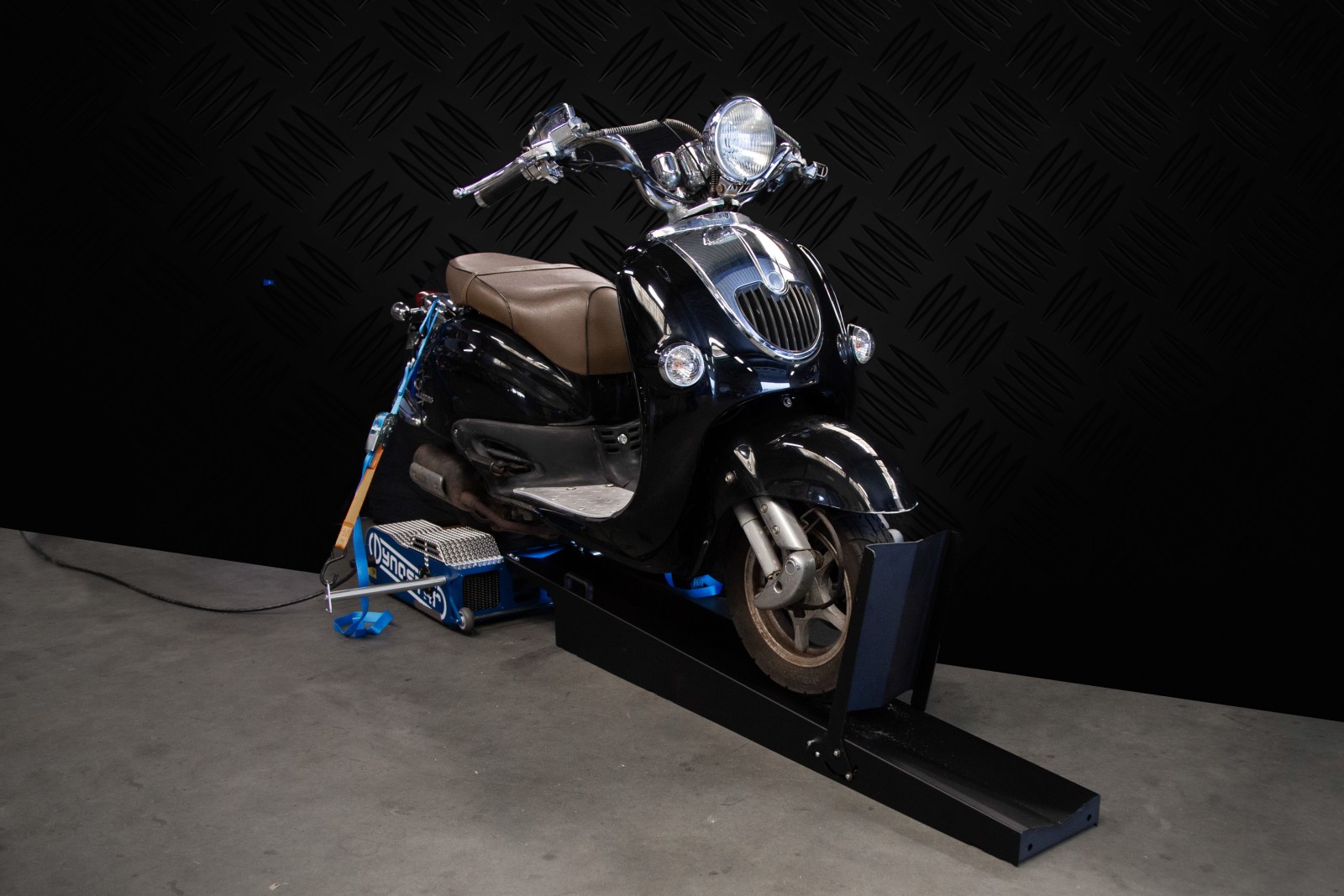

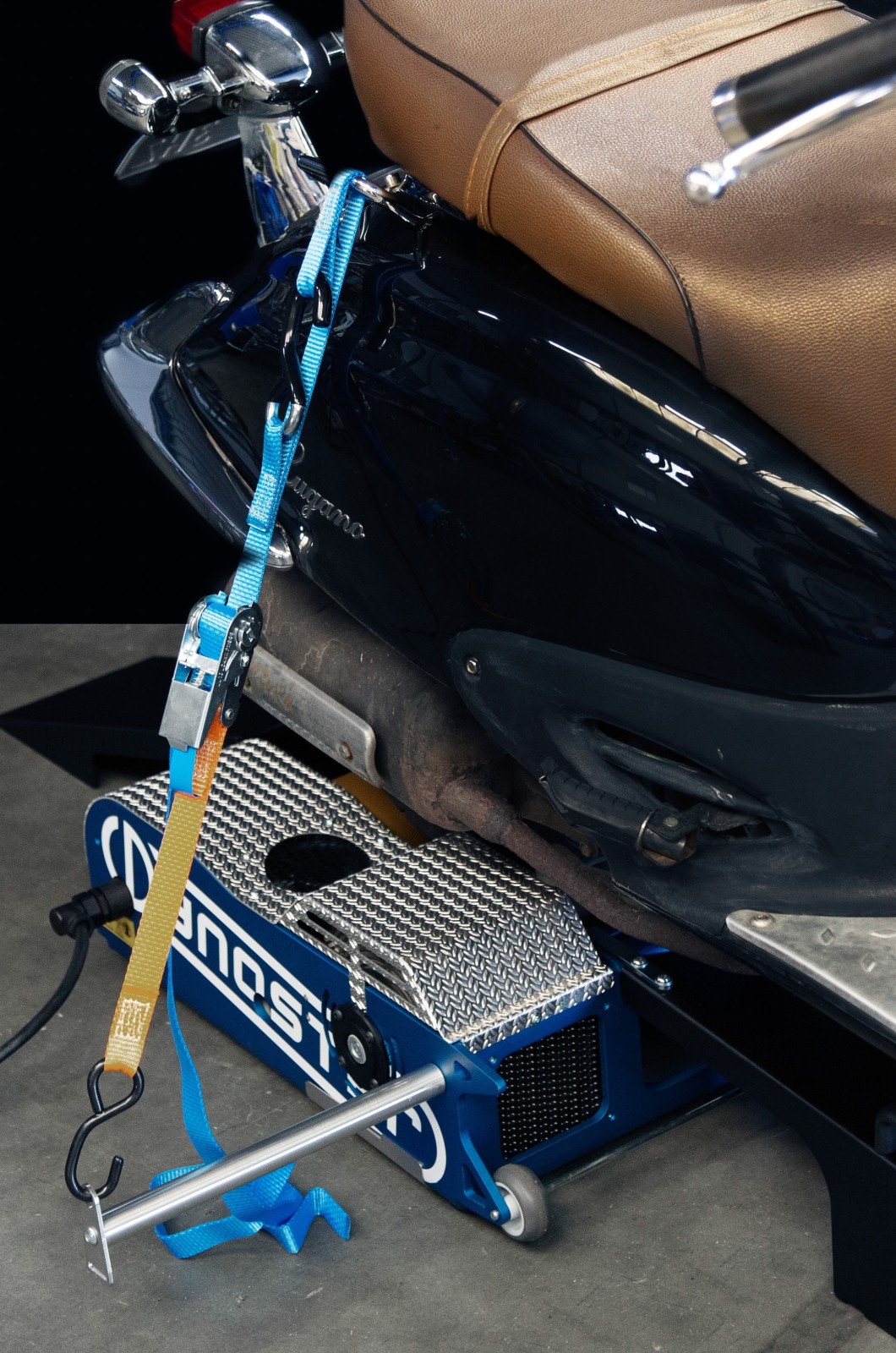

Testing under load, with the vehicle fixed to the dyno with the supplied ramp and automatic stopper, it gives you all the freedom to work and test.

Weight	:	48.7 kg
Dimensions (lxwxh)	:	0.55x0.382x0.225 m
Power requirements	:	230 VAC+PE 50-60 Hz
Max. consumed power	:	12 A
Air requirements	:	N/A
Max. speed	:	200 kph
Drum width	:	0.21 m
Drum diameter	:	0.14 m

Total inertia	:	0.4398 kgm²
Equivalent vehicle mass	:	89.8 kg
Max. Vehicle weight	:	200 kg
Max. Power cold	:	62.8 kW
Max. Power for 3 min	:	20.1 kW
Max. Power continuesly	:	14.6 kW

Technical specifications

Standard hardware features

IntegratedDAS Data Acquisition System
Advanced Dyno Station Software package
RS232 to USB-converter (length 3 m)
Remote control (length 2.5 m)
Straps (2 pcs)
Manuals
CE marking

Standard software features:

Static power measurement
Transient test
Weather station
Power correction to DIN, EEC and SAE standard
Real time display of engine speed, power, traction and vehicle speed in software; Real time display of speed, engine speed, road load, traction force and torque
Simulation of roller and air resistances for simulating situations on the road; Control of roll and air resistance for road load simulation
