Cooling fan C604

160 km/h
15 kW

our strongest model Axial dual fan

Looking for a strong cooling fan? We got you! The C604 is an in-house developed dual centrifugal fan and is engineered for high-performance automotive testing and cooling applications. It is our strongest model and delivers an impressive air speed of up to 160 km/h, providing sufficient power to push air efficiently through the radiator and engine compartment of a car. The model C604 is available with multiple electric motor options, ranging from 9.2 kW up to 15 kW, allowing you to select the ideal configuration for your specific testing requirements

Folder-Cooling systems-EN V3.1.pdf
2.95MB
 Request a free quote

Adjustable Air Direction


The fan features adjustable shutters, enabling you to precisely direct and optimize the airflow for maximum efficiency and accuracy during testing.

Advanced Airflow Control


As standard, the fan is equipped with an inverter (frequency controller). Unlike our other models it is combined with our proprietary ADS control software, this allows precise and flexible control of the airflow speed. The air speed can be:
Automatically synchronized with wheel speed, or
Manually adjusted using an intuitive slider control
This ensures optimal airflow simulation under all test conditions.

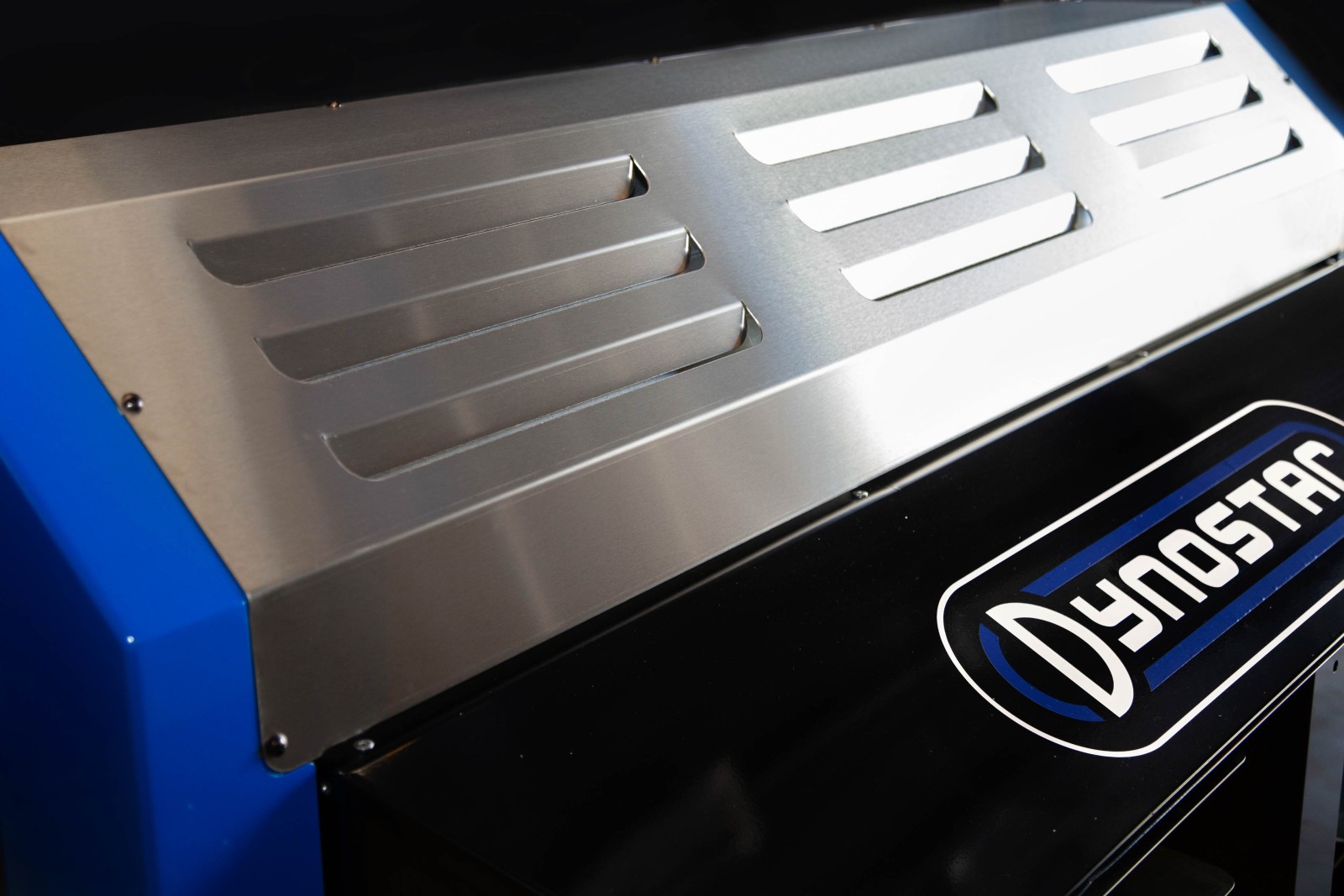

C604-2-klein

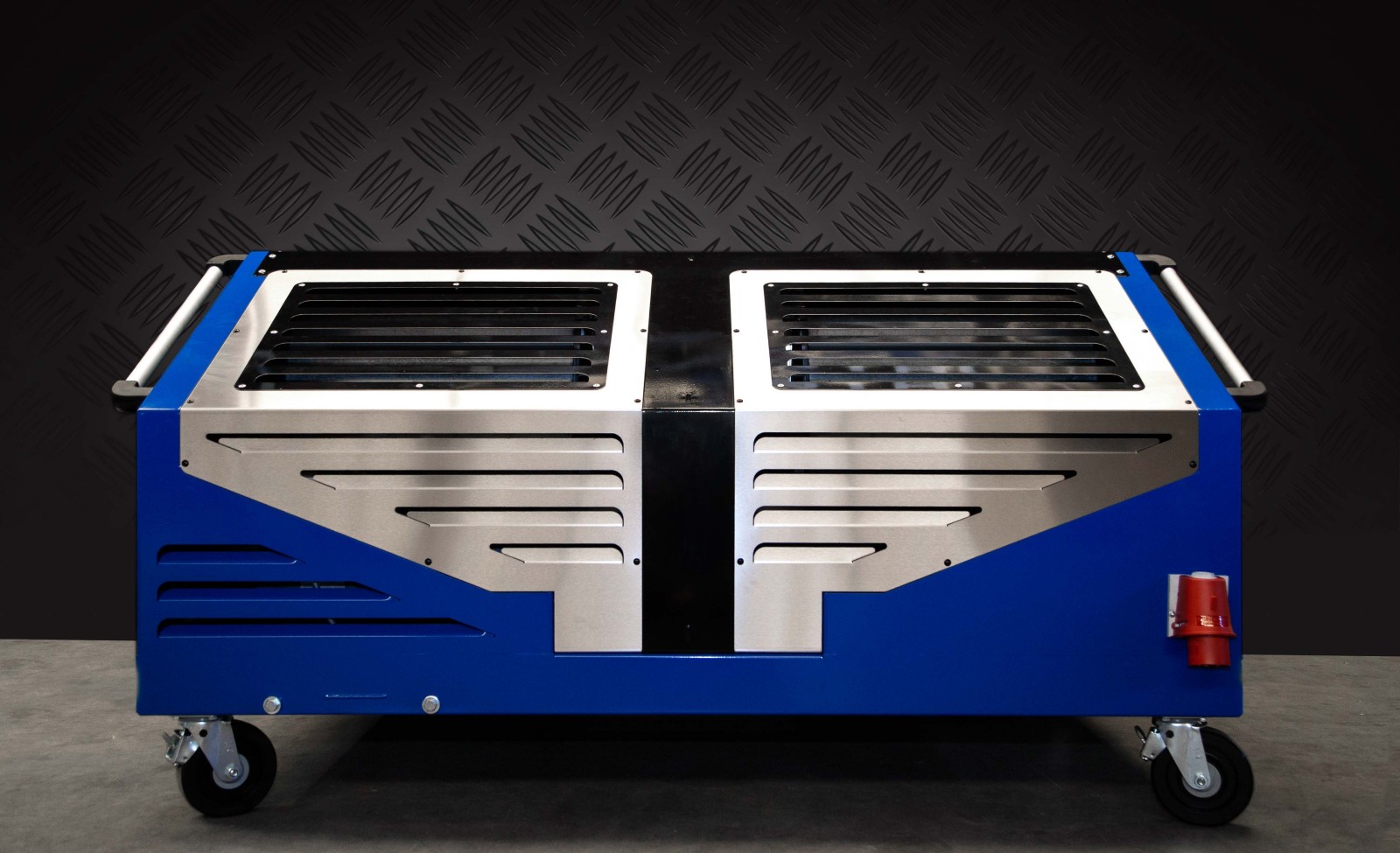

C604-klein

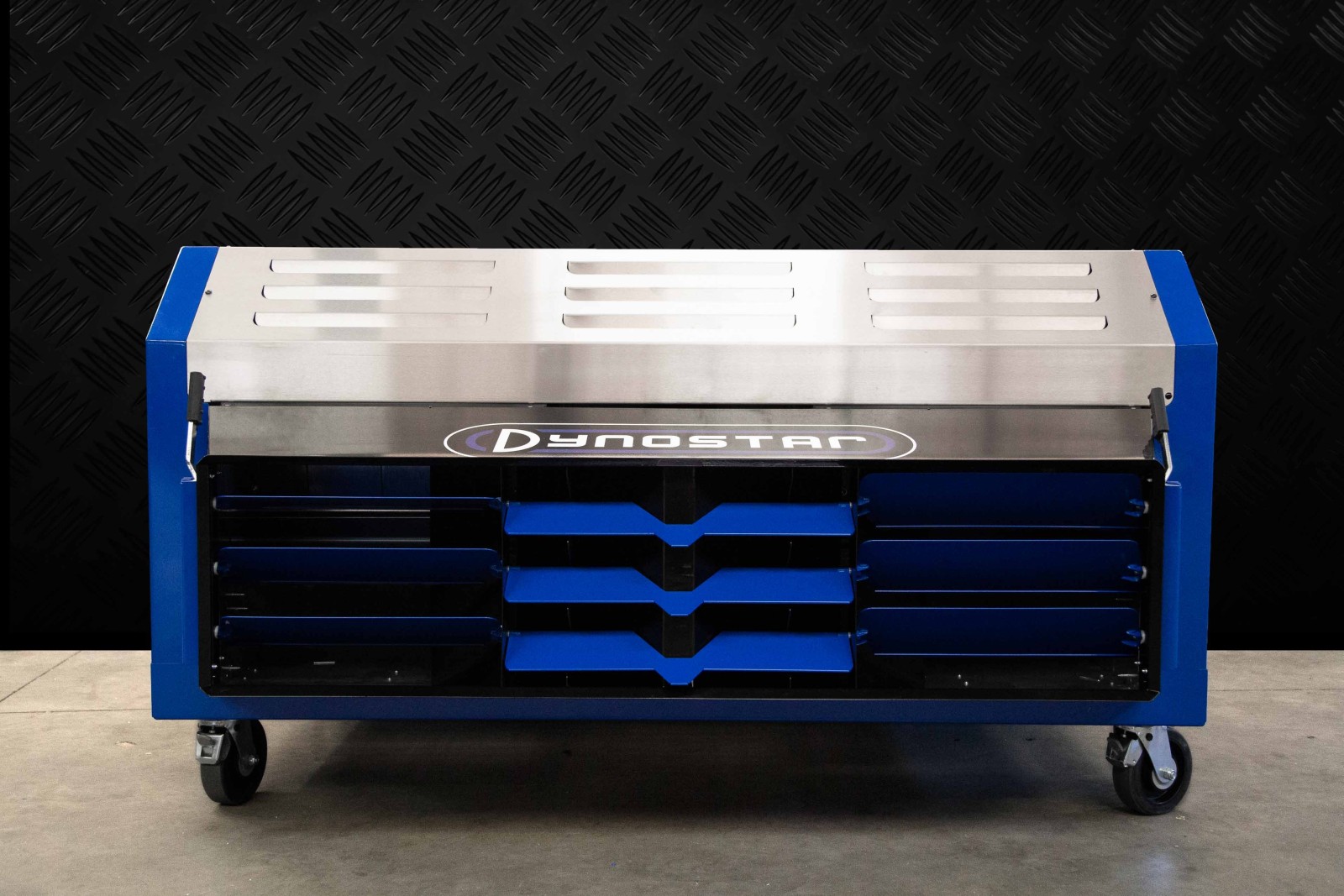

C604-V2-3-klein

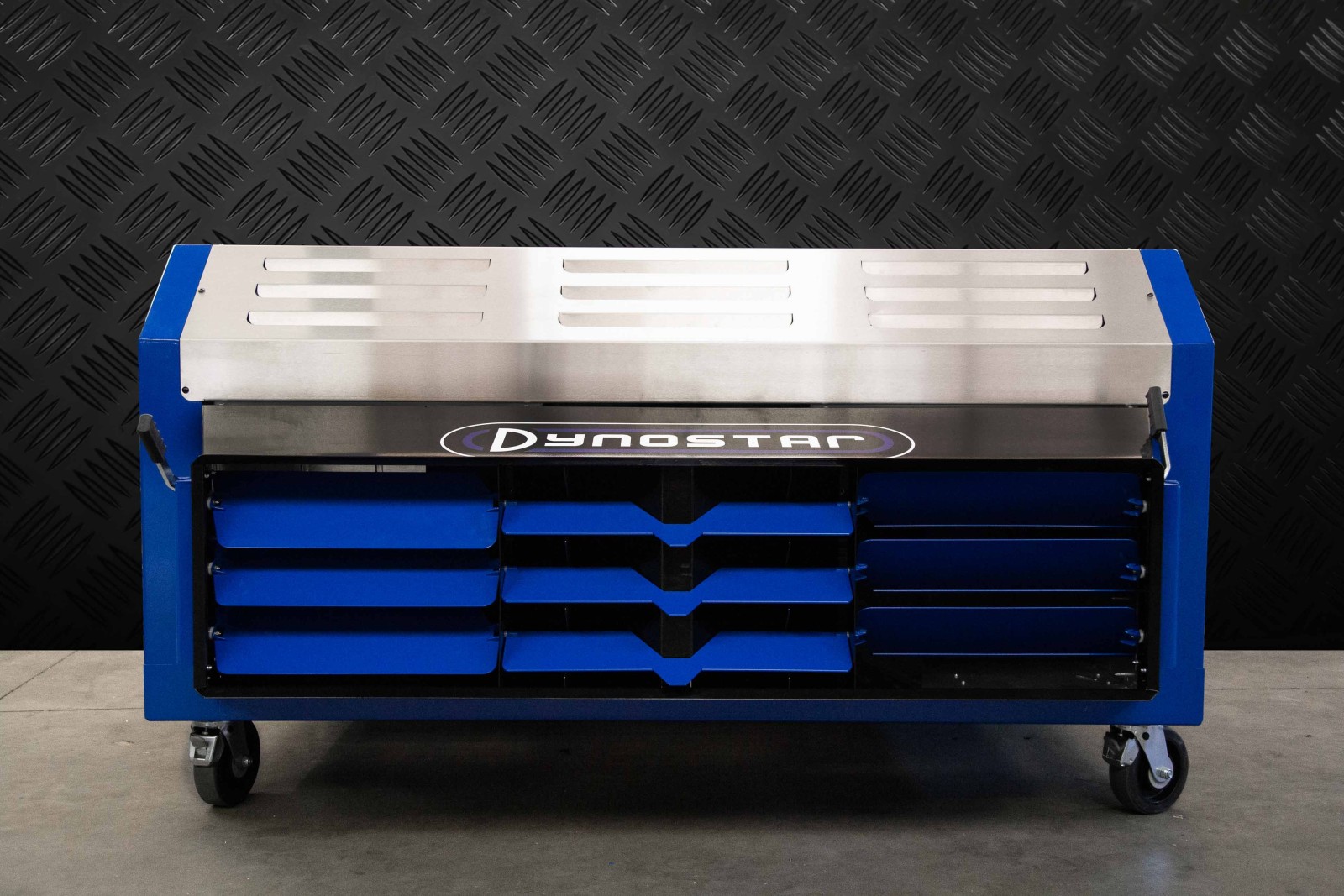

C604-V2-2-klein

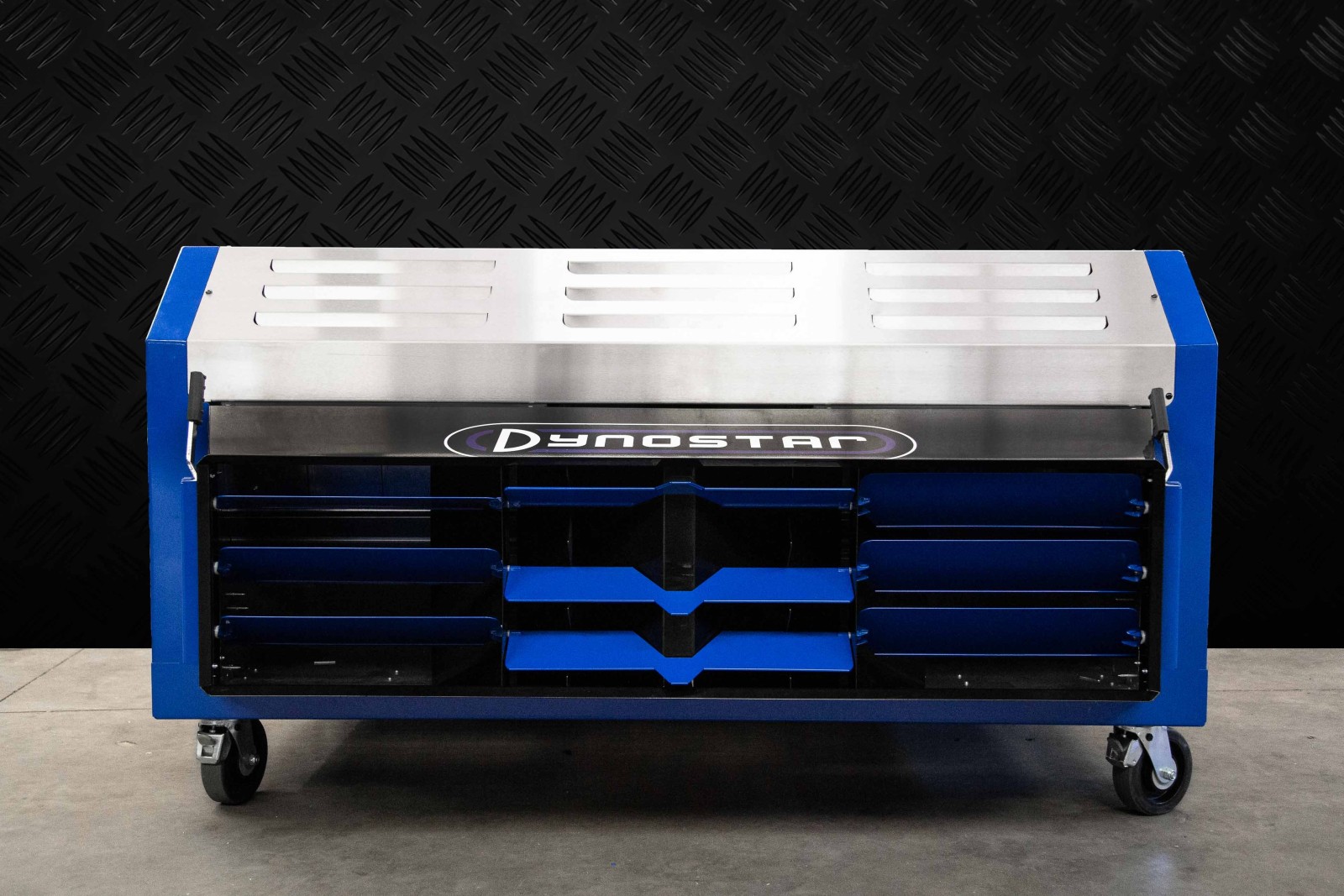

C604-V2-4-klein

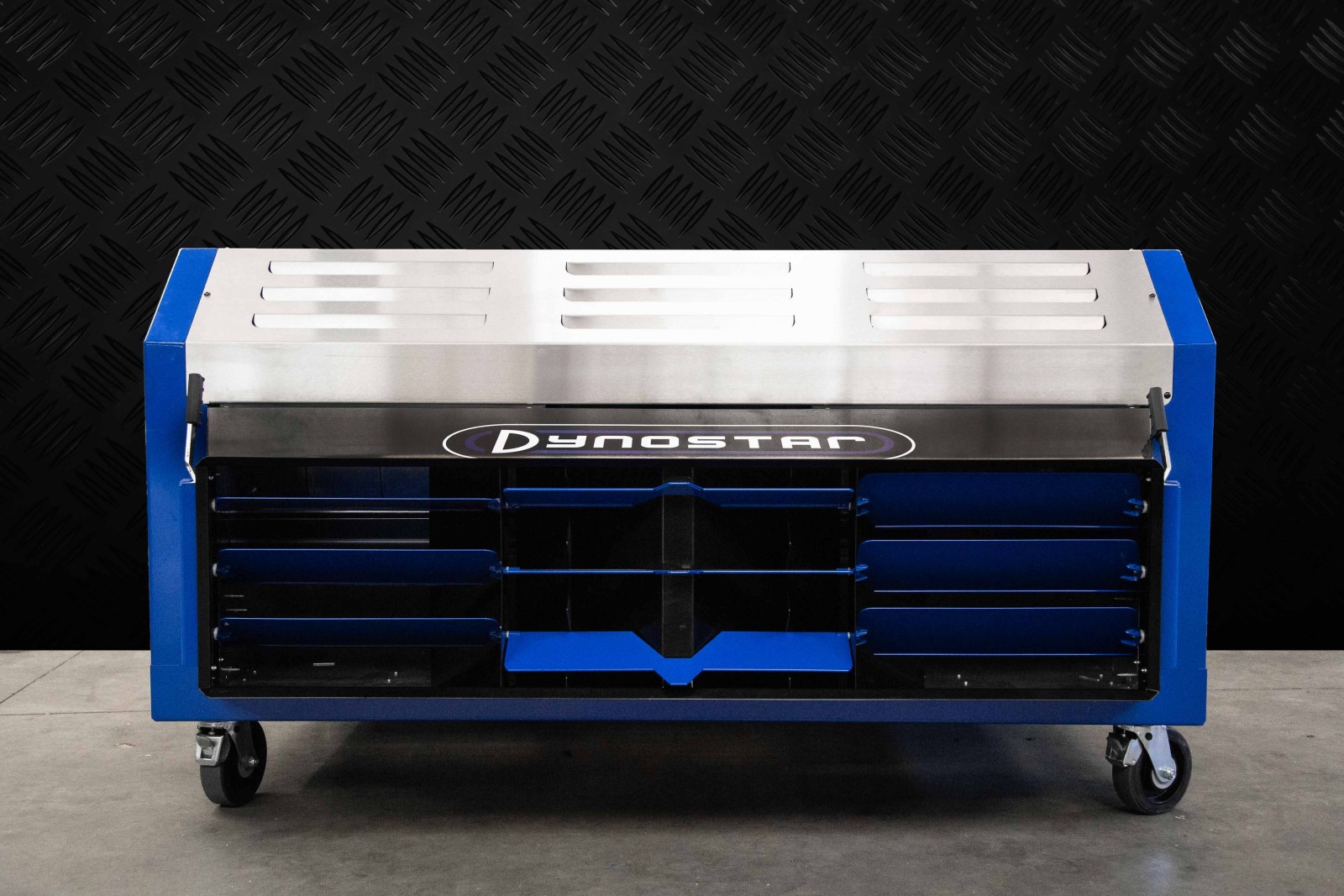

C604-V2-5-klein

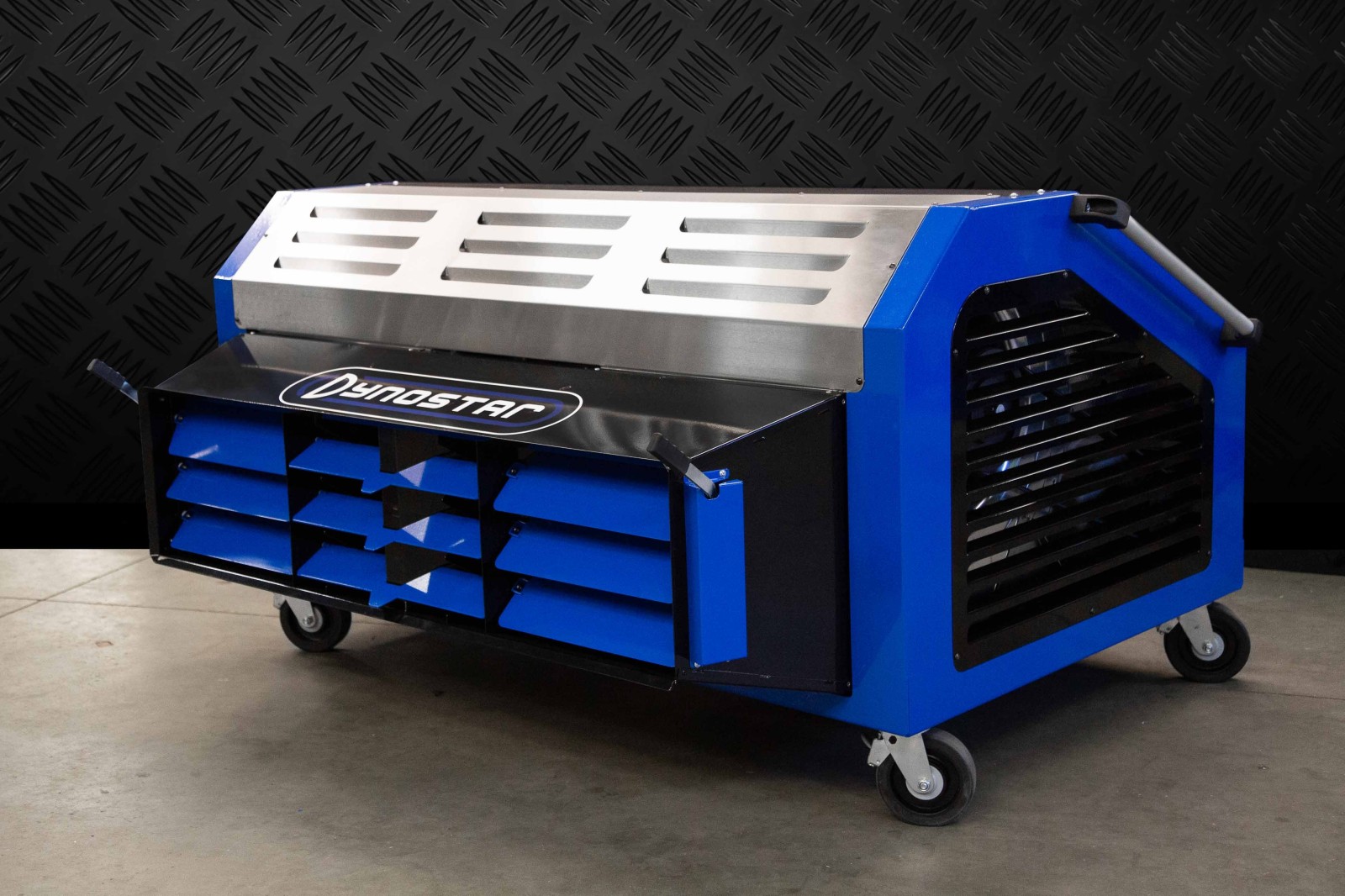

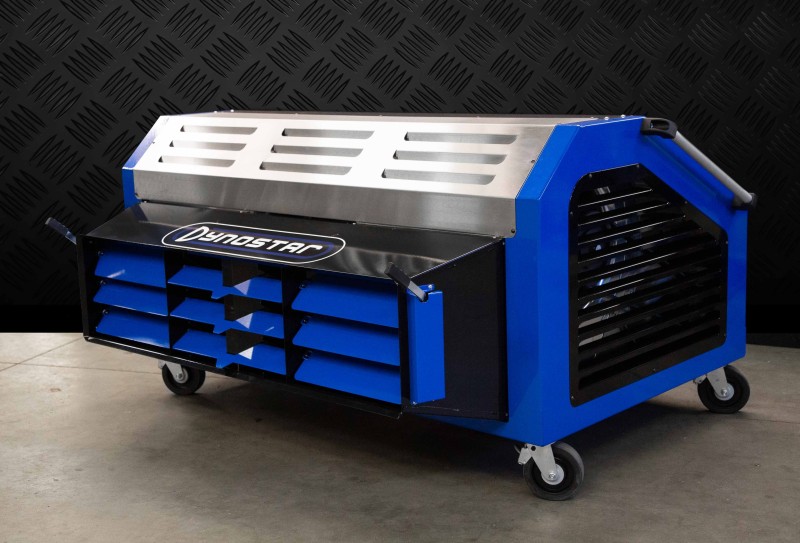

C604-V2-7-klein

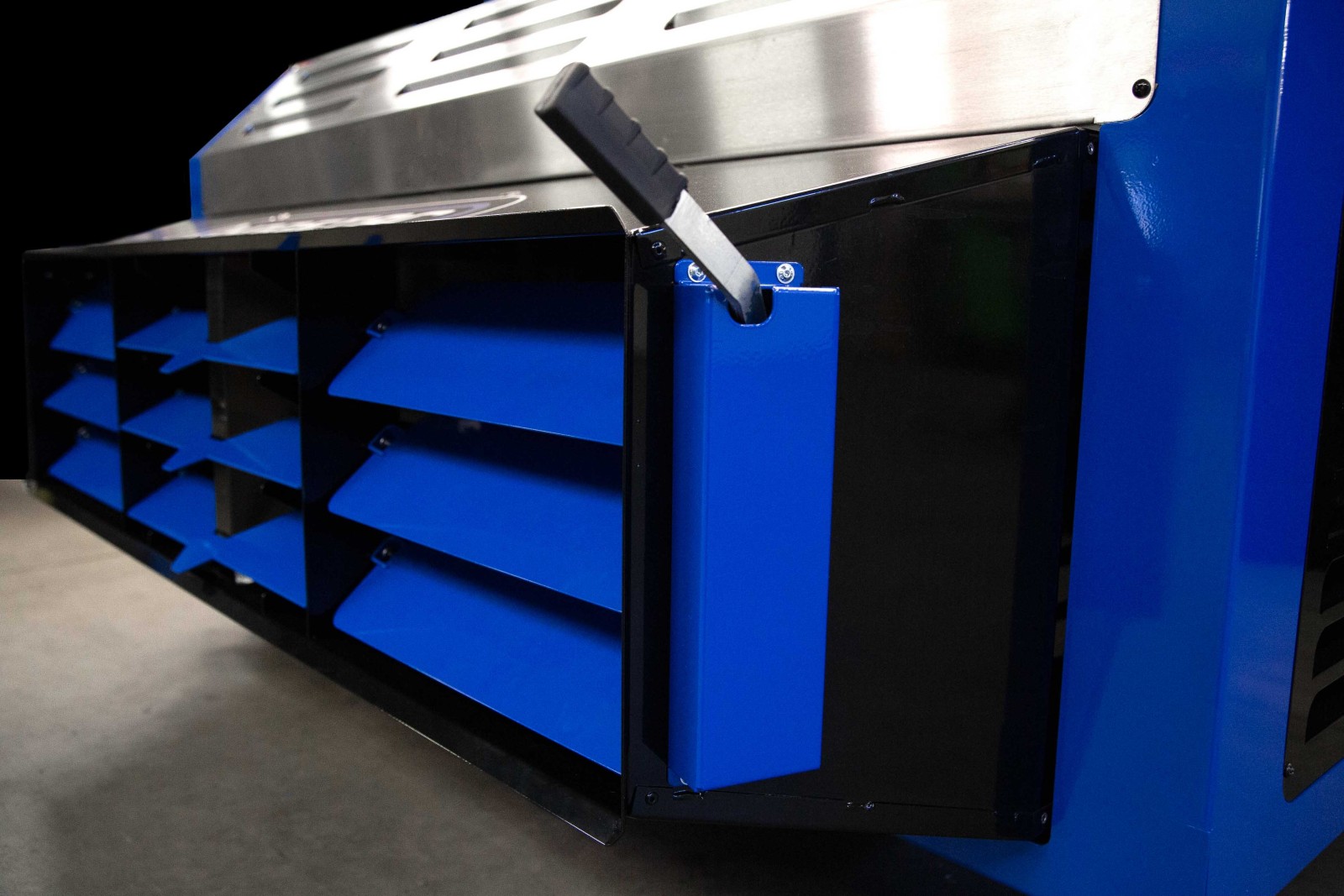

C604-V2-6-klein
Weight:
Dimensions (lxwxh):
Air outlet dimensions (lxw):
Power requirements:
Max. Power output:
Max. capacity:
Max. wind speed:
300 kg
185 x 115 x 100 cm
160 x 50 cm
3x400 VAC+N+PE 32 A 50-60 Hz
11 to 15 kW
34.000 to 44.000 m³/h 273 to 457 Pa
Up to 160 kph

Technical specifications

All fans are fully compatible with all dynamometers, including those from other manufacturers, and the controllers can be configured to meet specific customer requirements.
