RC1000-AWD
275 kmh
625 kW
DYNOSTAR QUALITY AT AN AFFORDABLE PRICE
This newly developed dyno will offer you the renowned Dynostar quality at an affordable price. The RC1000-AWD will come fully mechanically synchronized with the option of using a single 1000 Nm retarder or even adding an optional second 1000Nm retarder. The second retarder can also be added later when the dyno is up and running.

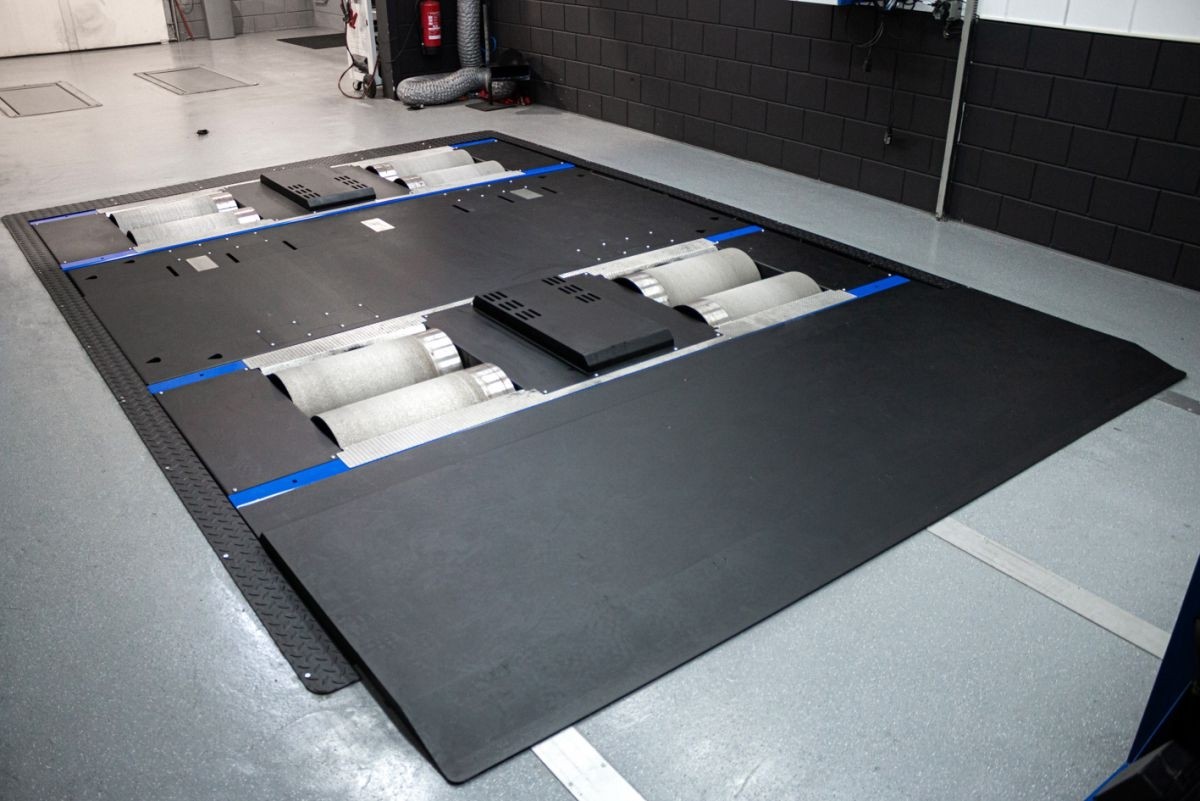

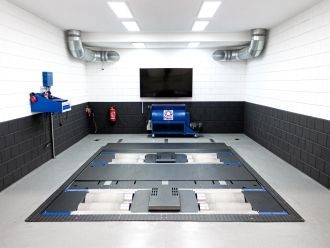

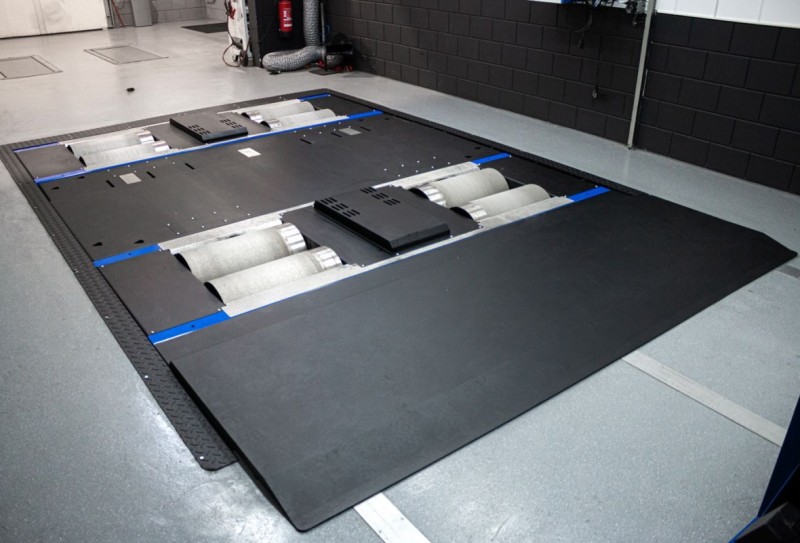

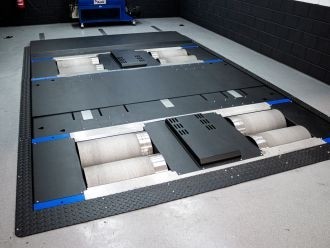

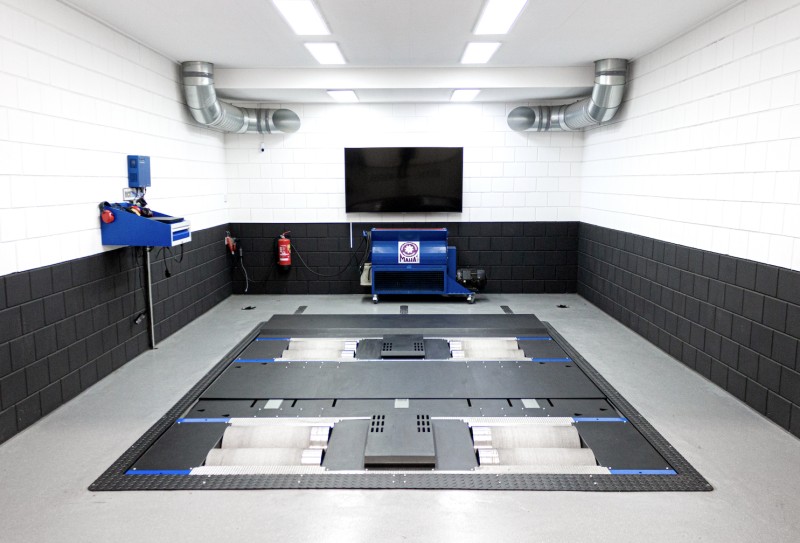

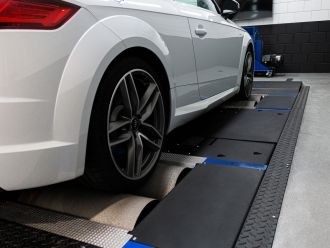

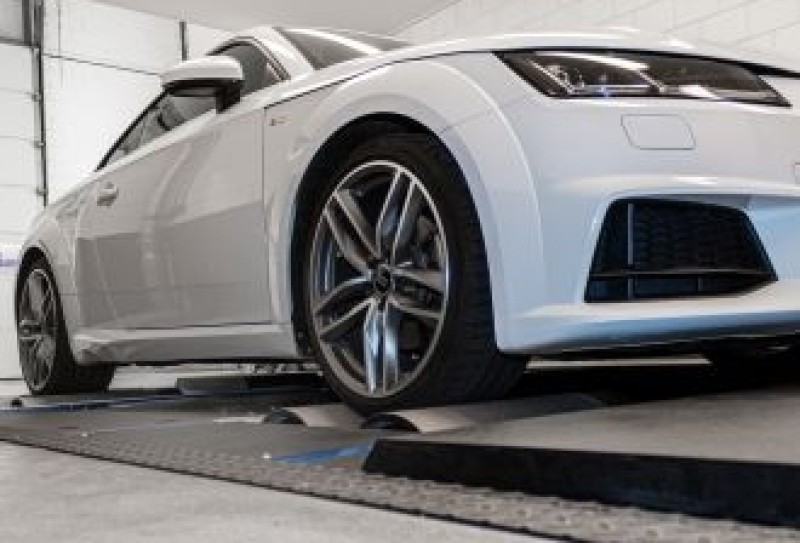

The RC1000AWD is designed as an above ground model with complementary drive on ramps. It has a very low deck height of 350mm and can easily be installed in any workshop. But this dyno can also be used perfectly as a pit model. The dyno also features integrated latching points to tie down the vehicle easily.
| Weight: |
|---|
| Dimensions (lxwxh): |
| Power requirements: |
| Air requirements: |
| Max. speed: |
| Drum width: |
| Drum diameter: |
| Number of drums: |
| Min. track: |
| Max. track: |
| Max. vehicle weight: |
|
Min. wheel base: |
|
Max. wheel base: |
|
Total inertia: |
|
Equivalent vehicle mass: |
|
Max. power 2WD: |
|
Max. power AWD: |
|
Max. static power continuous: |
*Based on a dynamic run with retarder load in 4th gear or higher.
**Based on a dynamic run with retarder load in 4th gear or higher.
| 3000 kg |
|
4,36 x 3,00 x 0,35 m |
| 3x400 VAC+N+PE 16A 50-60 Hz |
| 6 bar |
| 275 kph |
|
0,65 m |
| 0,35 m |
| 8 |
| 0,9 m |
| 2,2 m |
| 2500 kg |
|
2,3 m |
|
3,1 m |
|
21,5 / 22,0 kgm2 |
|
702 / 718 kg |
| 400* / 500** kW |
| 500 / 625 kW |
|
110 / 220 kW |
Technical specifications
Versatile
With it’s adjustable wheelbase from 2,3 meters up to 3,1 meters this reliable dynamometer is suitable for testing a wide range of cars. Everything from a Fiat 500 up to a BMW 7-series will fit easily.
