Cooling fan C606

125 Km/h

A Powerful Fan Designed for Narrow Workshops

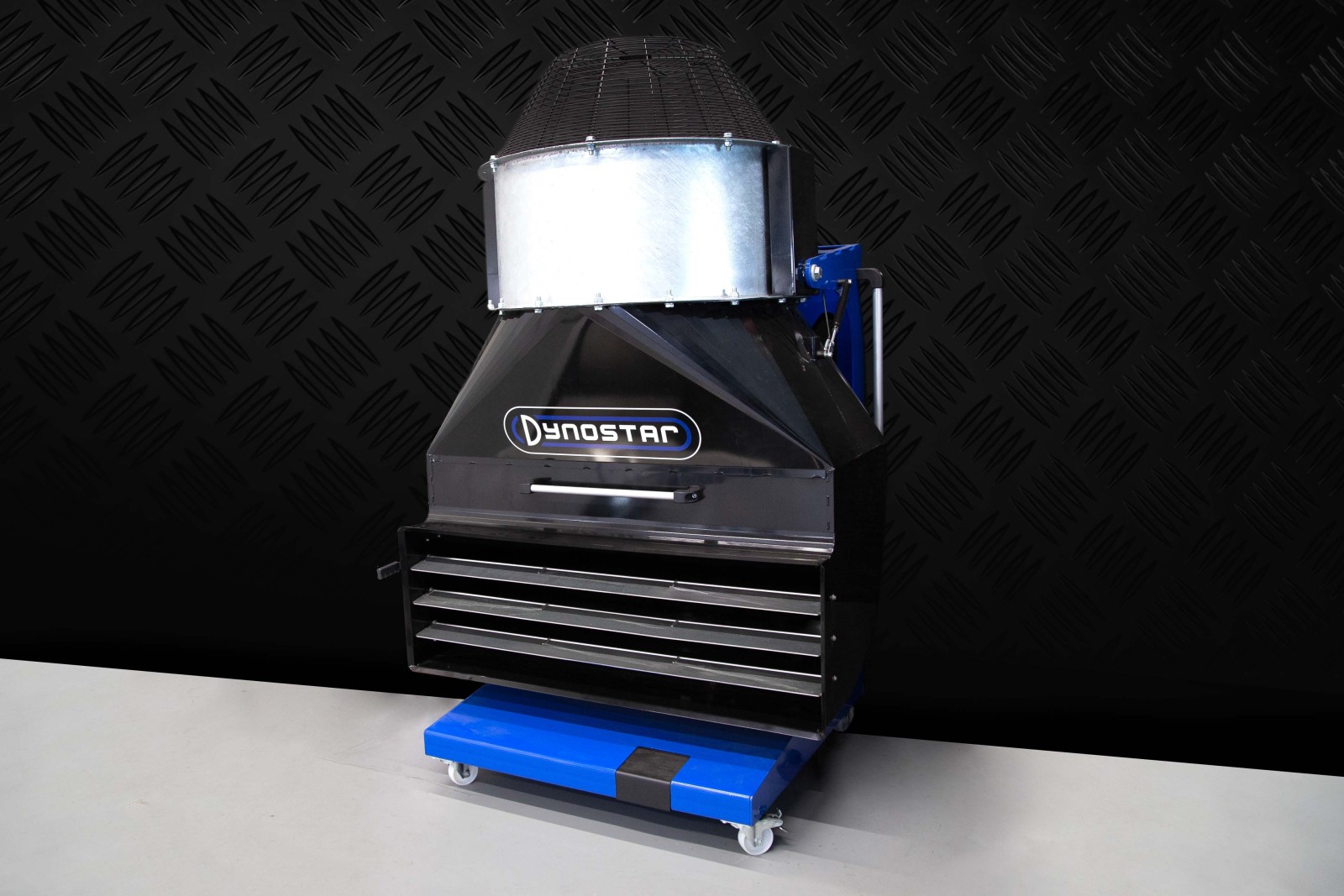

Thanks to its compact and intelligent design, the C606 cooling fan is ideally suited for narrow workshops. This Dynostar propeller fan delivers air speeds of up to 125 km/h and provides sufficient power to efficiently push air through a vehicle’s radiator and engine compartment. Multiple e-motor options are available, ranging from 4 kW to 9.2 kW.

Folder-Cooling systems-EN-V3.1.pdf
2.95MB
 Request a free quote

An optional frequency controller can be integrated and operated via our ADS software, allowing precise control of the airflow. This enables automatic synchronization with wheel speed or manual adjustment of the desired air speed using a slider.

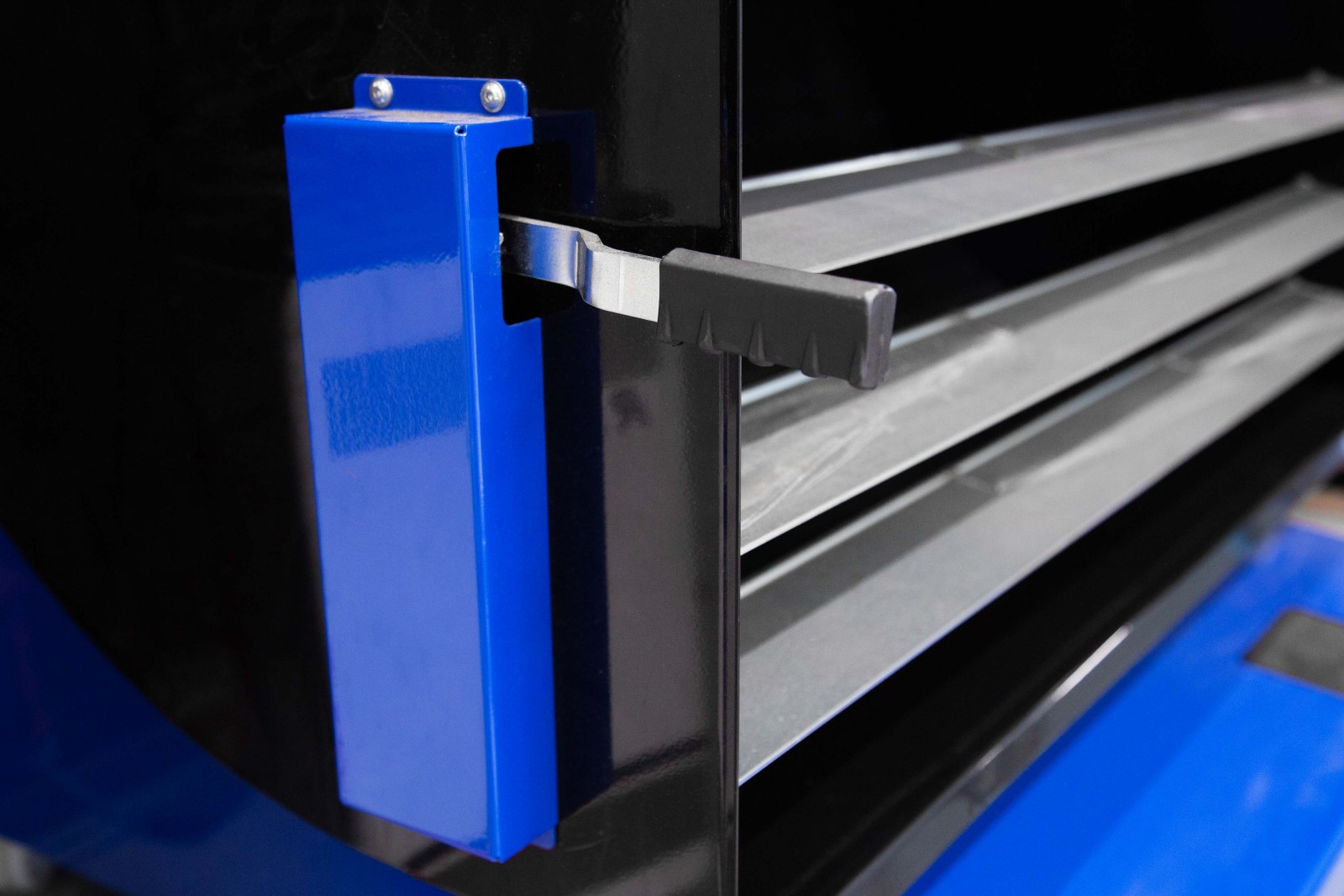

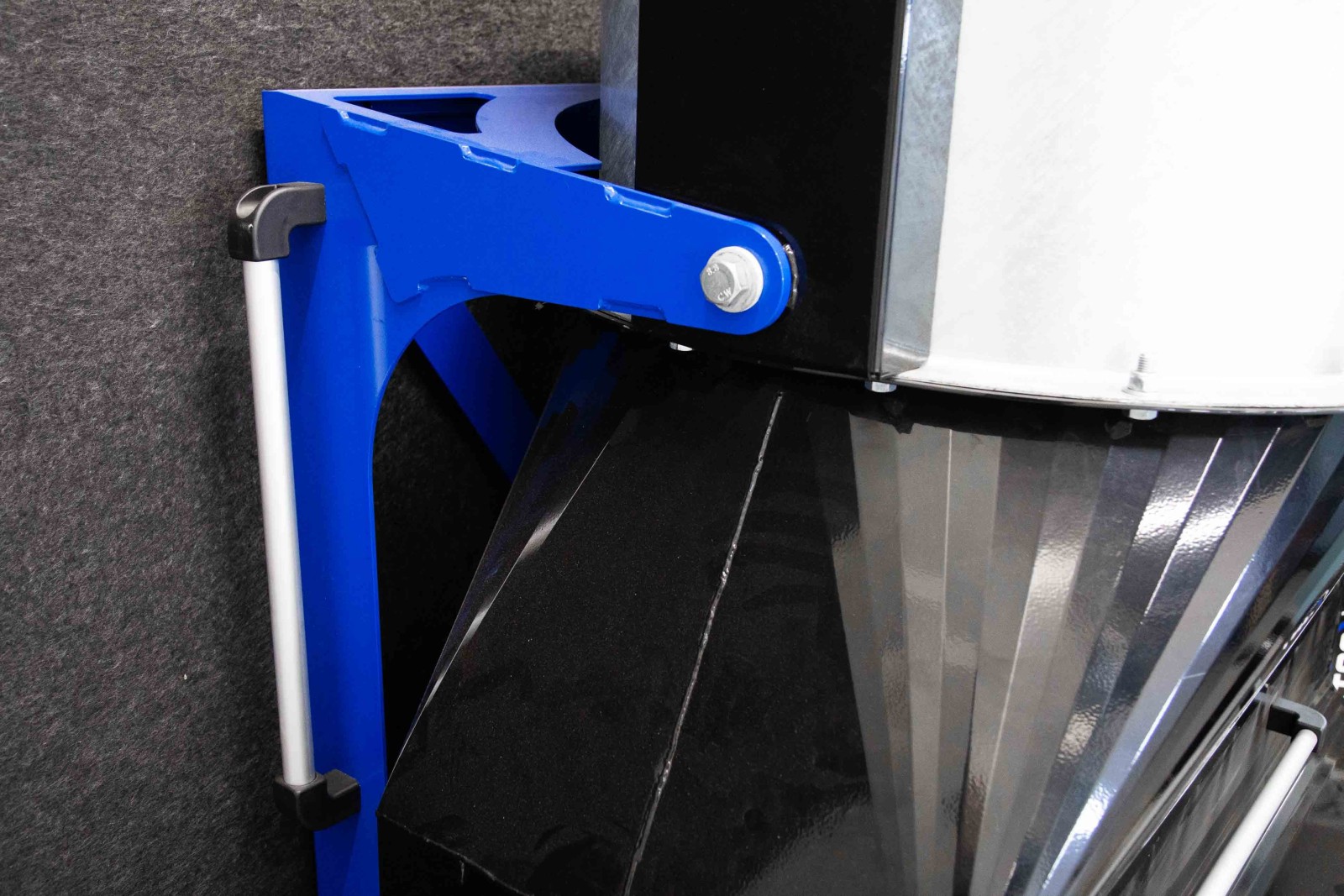

For optimal airflow direction, adjustable shutters allow you to fine-tune the air stream and achieve the best possible results. The fan’s intake is tilted 90 degrees upward, and the fan unit itself is fully tiltable for maximum flexibility. Additionally, the fan is mounted on four independent, braked casters, ensuring easy maneuverability and stable positioning.

C606-1-klein
C606-2-klein
C606-klein
Weight : 210 kg
Dimensions (lxwxh) : 100 x 125 x 200 cm
Air outlet dimensions (lxw) : 120 x 50 cm
Power requirements : 3x400 VAC+N+PE 32 A 50-60 Hz
Max. Power output: : 7,5 kW
Max. capacity: : 36.000 m³/h
Max. wind speed: : 75-125 kph

Technical specifications

All fans are fully compatible with all dynamometers, including those from other manufacturers, and the controllers can be configured to meet specific customer requirements.
