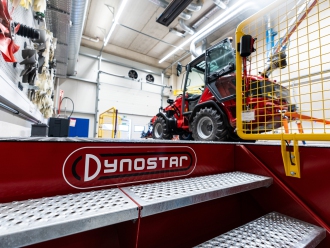

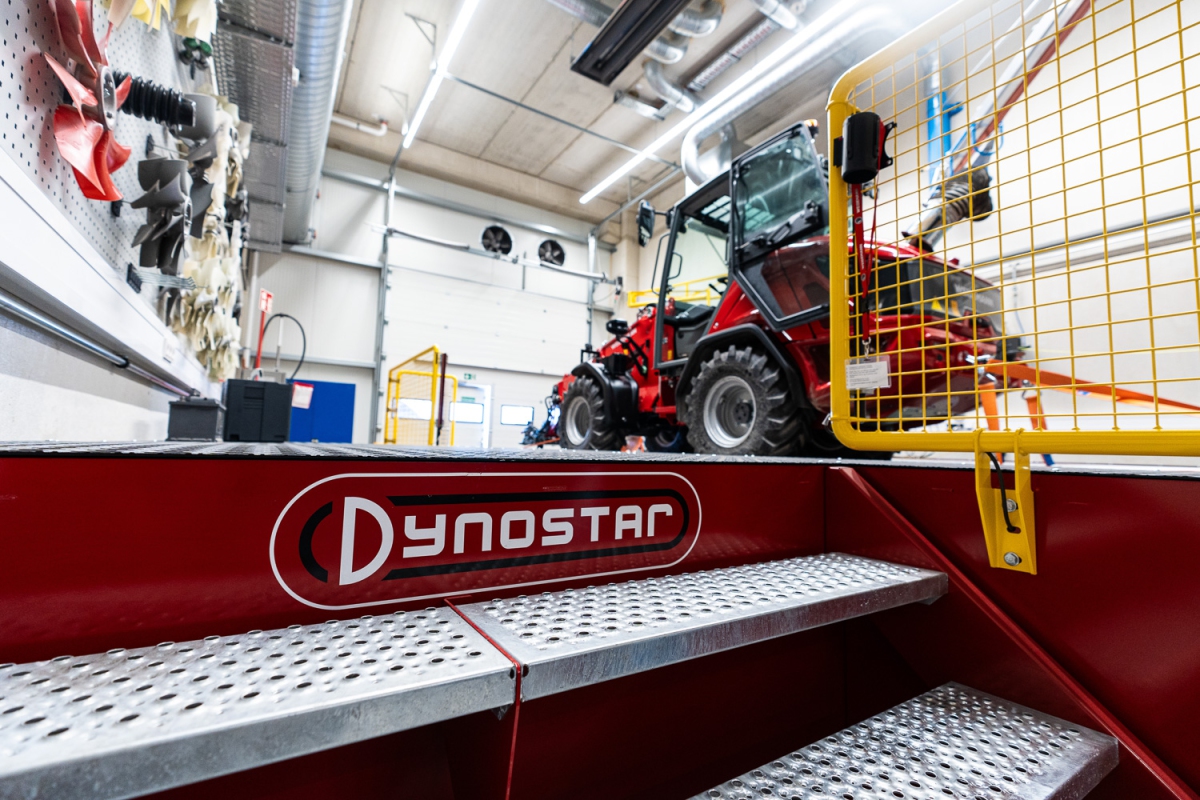

RC150: Built for Heavy-Duty Performance

Testing at the limit and beyond... That’s what we had in mind when developing our top of the line chassis dynamometer for agricultural and industrial wheel loaders.

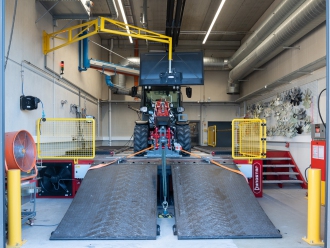

The RC150-EOL allows you to do heavy duty testing for a whole range of vehicles. From the smallest wheel loader to the heavy duty class (up to 20ton) and all in between.

Zero speed max traction force test, drive cycles, automated testing based on GPS data or full manual control. With the in house developed software and controls, we can easily customize the software to your requirements and needs. The RC150-EOL is suitable for R&D and EOL testing.

Technical specifications

Weight:	14000 [kg]
Dimensions (lxwxh):	8.15 x 4.60 x 1 [m]
Power requirements:	3x400+N+PE 315  [A]
Air requirements:	Min. 6 [bar]
Operating temperature	-10°C to + 50°C
Humidity	Max. 95%
Max. speed:	150 [km/h]
Max. speed e-drive	50 [km/h]

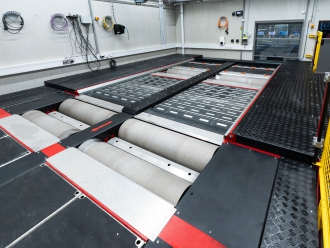

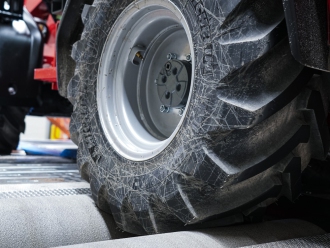

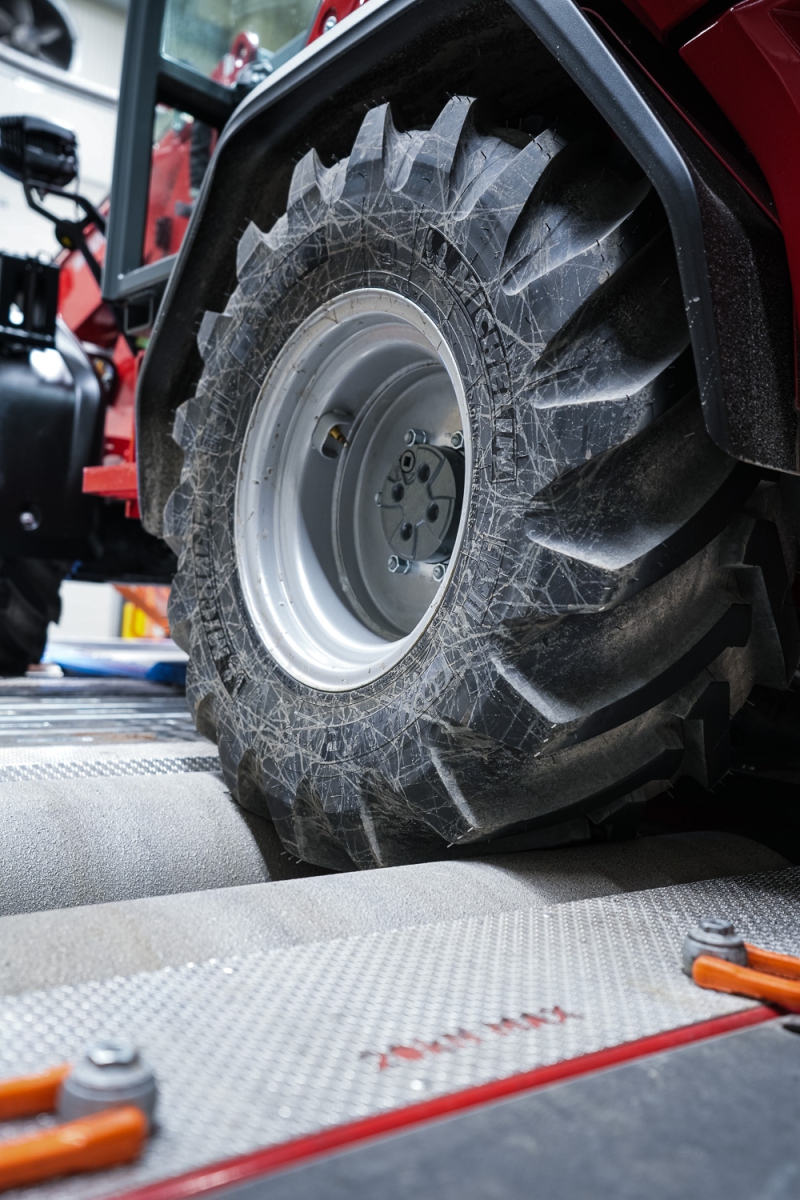

Drum width:	1350 [mm]
Drum diameter:	400 [mm]

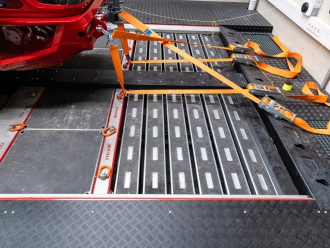

Min. wheelbase roller top:	850 [mm]
Min. wheelbase CTC	1450 [mm]
Max. wheelbase CTC	3200 [mm]
Min. track:	300 [mm]
Max. track:	3000 [mm]
Max. vehicle weight	20000 [kg]
Max. axle load:	10000 [kg]

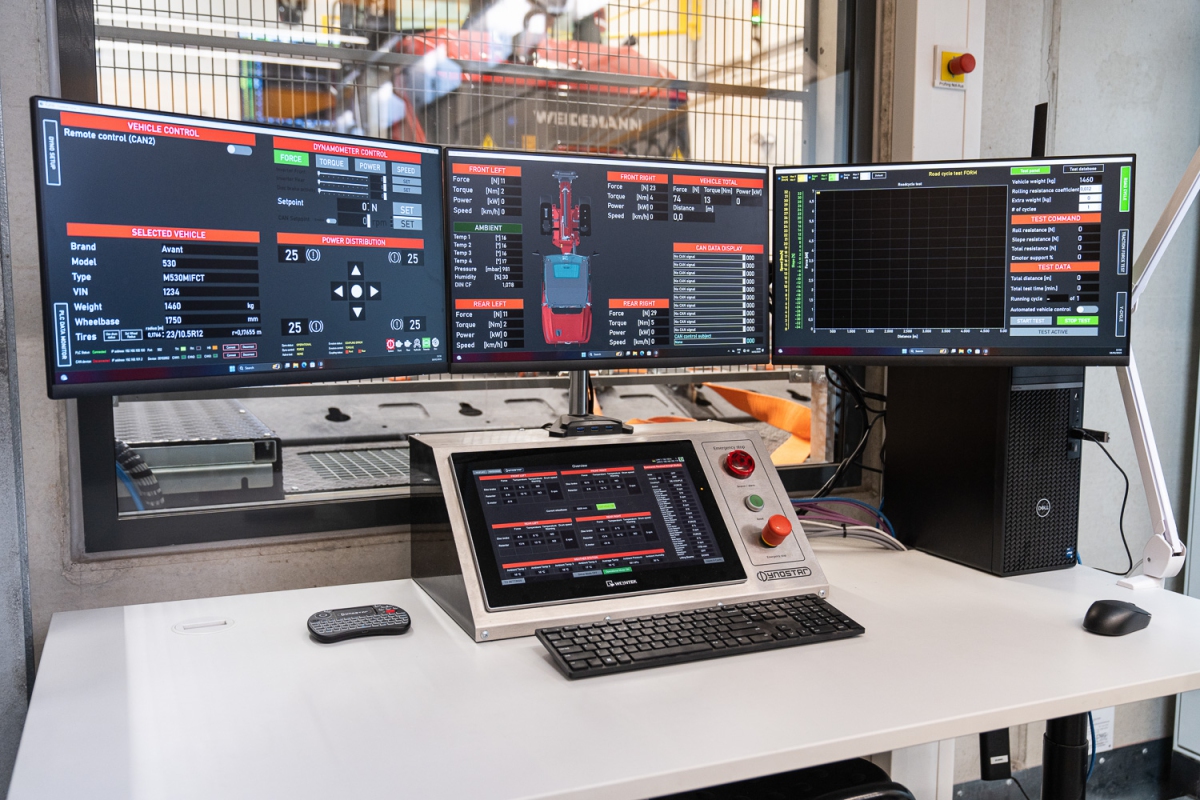

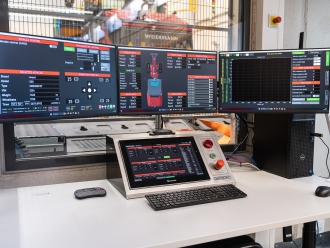

Software

• Dyno-specific software with extensive customization options
• Build your own vehicle database
• Control vehicle and dynamometer based on force, torque, power, or speed
• Individual control of forces or parameters per wheel (assuming 4 wheels)
• Measurement per wheel
• Pre-programmed test profiles
• Road cycles; Configurable road cycle profiles or based on GPS data
• Traction force test; Test profile can be configured yourself
• Vehicle control via CAN
• Fully automated testing
• Readout and logging of both vehicle and test bench data
